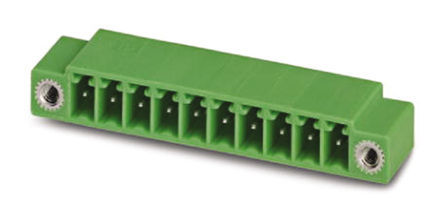

Phoenix Contact PCB 接线端子块 COMBICON EMCV 系列 9路 3.81mm节距 1879353, 压配合端接, 8A
9 针位端子块 接头，公引脚，带罩（4 面） 0.150"（3.81mm） 垂直 - 通孔
得捷:
TERM BLOCK HDR 9POS VERT 3.81MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON EMCV 系列 9路 3.81mm节距 1879353, 压配合端接, 8A
艾睿:
Phoenix Contact brings you their wire to board 1879353 header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector has 9 contacts that are plated with tin. It has a straight body orientation. It has a maximum voltage rating of 160 V. It has a header type gender. This is a 1-row connector. Its pitch is 3.81 mm. This device has a maximum current rating of 8 A. It uses the press fit termination method. This product is 44.68 mm long, 9.2 mm tall and 7.25 mm deep. 1879353 is housed in green polybutylene terephthalate.
Verical:
Conn Wire to Board HDR 9 POS 3.81mm Press Fit ST Thru-Hole
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 9 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Press-in technology - pin layout: Linear pinning - solder pin [P
Online Components:
Conn Wire to Board HDR 9 POS 3.81mm Press Fit ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
