Phoenix Contact PCB 接线端子块 COMBICON IC 系列 6路 5.08mm节距 1825161, 焊接端接, 12A
Conn Wire to Board HDR 6 POS 5.08mm Solder RA Thru-Hole
得捷:
TERM BLOCK HDR 6POS 90DEG 5.08MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON IC 系列 6路 5.08mm节距 1825161, 焊接端接, 12A
艾睿:

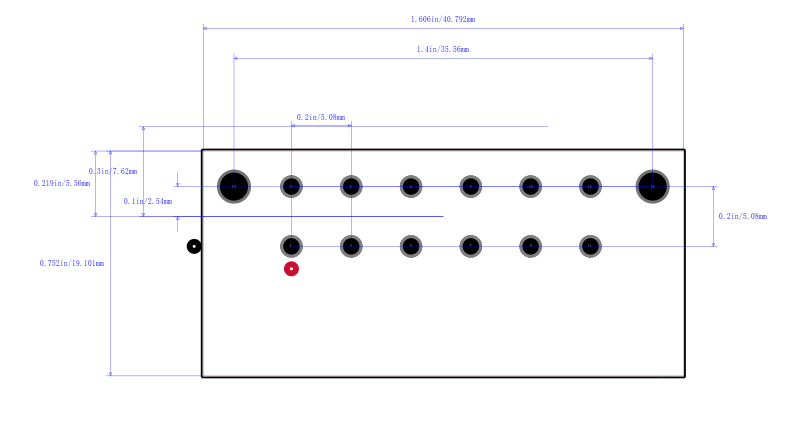

Use this wire to board 1825161 header connector from Phoenix Contact where IDC ribbon cables are used. This HDR connector has 6 contacts that are plated with tin. It has a maximum voltage rating of 320 V. This is a 1-row connector. It has a header type gender. Its pitch is 5.08 mm. It has a right angle body orientation. This device has a maximum current rating of 12 A. 1825161 is housed in green polyamide. It uses the solder termination method. This product is 40.6 mm long, 10.2 mm tall and 19 mm deep.
Verical:
Conn Wire to Board HDR 6 POS 5.08mm Solder RA Thru-Hole
MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 6 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3
Online Components:
Conn Wire to Board HDR 6 POS 5.08mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
