1919747

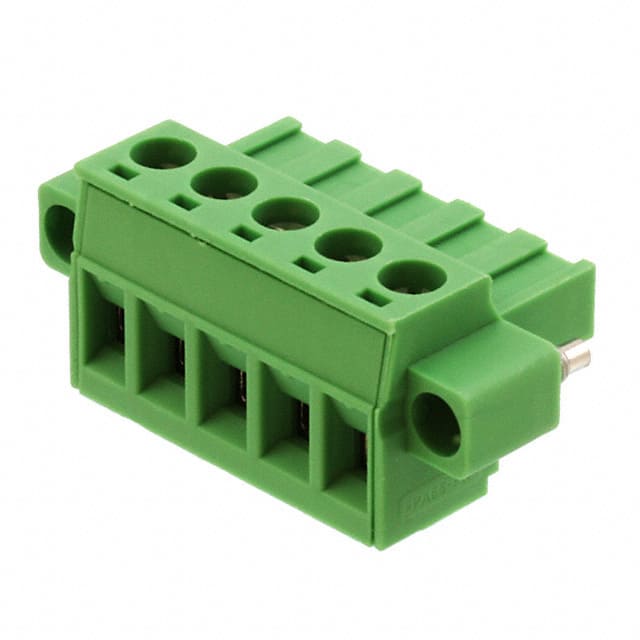

Phoenix Contact COMBICON MSTBT 系列 5mm 节距 5 路 母 绿色 插头 1919747, 螺钉端接

5 针位端子块 插头，母插口 0.197"（5.00mm） - 180° 自由悬挂

得捷:
TERM BLOCK PLUG 5POS STR 5MM

欧时:
PCB Connector 1919747

艾睿:
Need to ensure strong connections between circuits? This 1919747 PCB terminal block from Phoenix Contact will do just that! This F connector has 5 contacts that are plated with tin. It has a maximum voltage rating of 320 V. It has a right angle body orientation. This is a 1-row connector. Its pitch is 5 mm. It has a female type gender. 1919747 is housed in polyamide. This device has a maximum current rating of 12 A. It uses the screw termination method. This product is 18.2 mm deep.

Verical:
Conn Terminal Block F 5 POS 5mm Screw RA Panel Mount 12A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 5 - pitch: 5 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 5 POS 5mm Screw RA Panel Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
