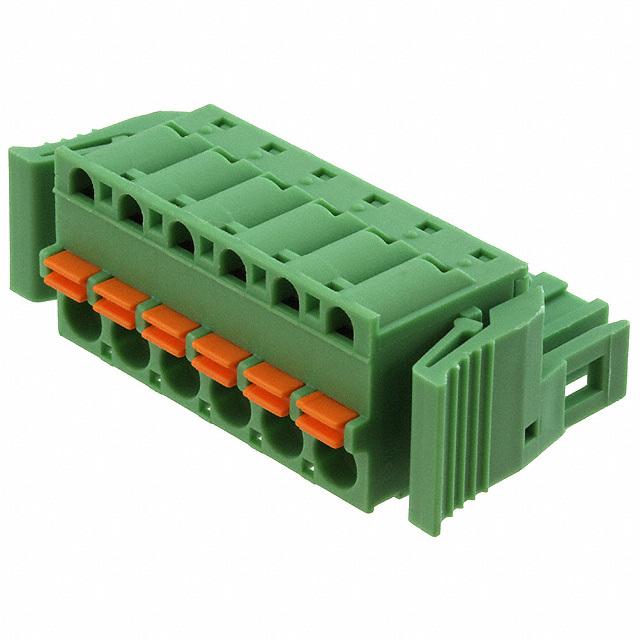

Phoenix Contact COMBICON FKC 系列 5.08mm 节距 6 路 母 绿色 插头 1925731, 弹簧笼端接
Conn Spring Cage F 6 POS 5.08mm ST Panel Mount 12A
得捷:
TERM BLOCK PLUG 6POS STR 5.08MM
欧时:
Phoenix Contact COMBICON FKC 系列 5.08mm 节距 6 路 母 绿色 插头 1925731, 弹簧笼端接
艾睿:
Ideal for testing purposes this spring cage 1925731 PCB terminal block manufactured from Phoenix Contact will exceed your needs. This F connector has 6 contacts that are plated with tin. It has a straight body orientation. Its pitch is 5.08 mm. It has a maximum voltage rating of 320 V. This is a 1-row connector. It has a female type gender. 1925731 is housed in polyamide. This device has a maximum current rating of 12 A. This product is 43.9 mm long, 15 mm tall and 25.1 mm deep. Its wire is 12-24 AWG.
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 6 - pitch: 5.08 mm - connection method: Push-in spring connection - color: green - contact surface: Tin - Article with self-lockin
Online Components:
Conn Spring Cage F 6 POS 5.08mm ST Panel Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
