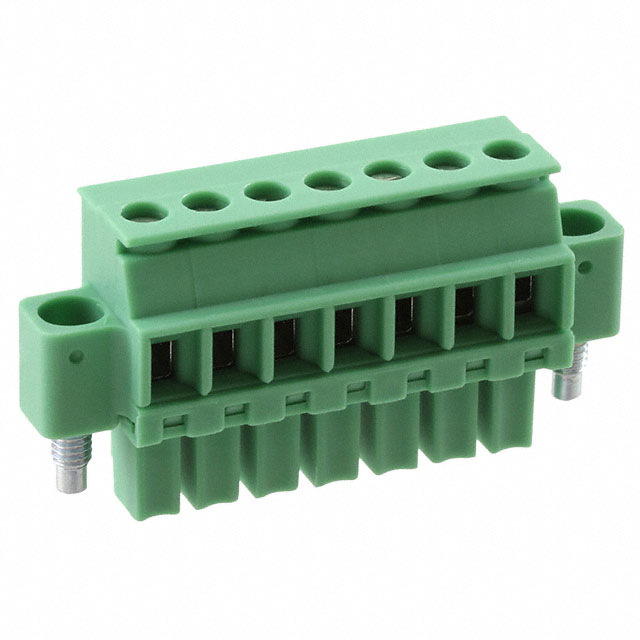

Phoenix Contact MINI COMBICON MCVW 系列 3.81mm 节距 7 路 母 绿色 插头 1828540, 螺钉端接
Conn Terminal Block F 7 POS 3.81mm Screw ST Panel Mount 8A
得捷:
TERM BLOCK PLUG 7POS 3.81MM
欧时:
Phoenix Contact 1828540 MINI COMBICON MCVW 系列 3.81mm 节距 7 路 母 插头, 螺钉端接 绿色
贸泽:
Pluggable Terminal Blocks 7 Pos 3.81mm pitch Plug 28-16 AWG Screw
艾睿:
Connecting one or more circuits together, this 1828540 PCB terminal block from Phoenix Contact is a must-have! This F connector has 7 contacts that are plated with tin. Its pitch is 3.81 mm. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 160 V. It has a female type gender. This device has a maximum current rating of 8 A. 1828540 is housed in polyamide. Its wire is 16-28 AWG. It uses the screw termination method. This product is 37.06 mm long, 19.1 mm tall and 10.4 mm deep.
Verical:
Conn Terminal Block F 7 POS 3.81mm Screw ST Panel Mount 8A
MASTER:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 7 - pitch: 3.81 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 7 POS 3.81mm Screw ST Panel Mount 8A
Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
