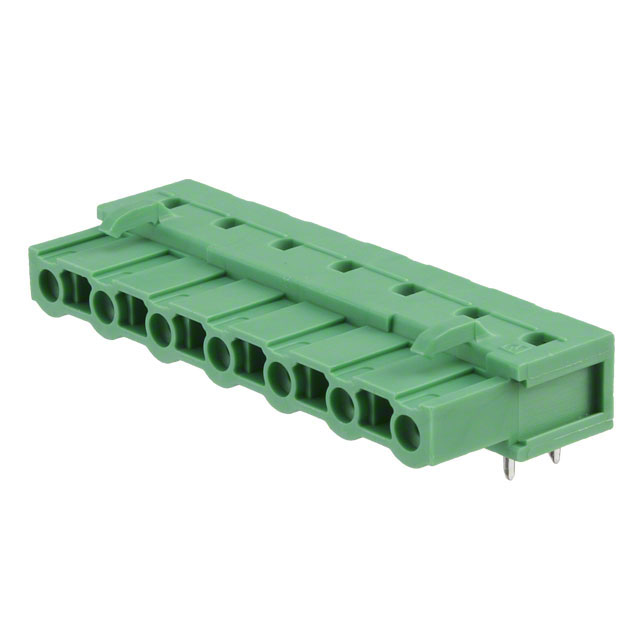

Phoenix Contact PCB 接线端子块 COMBICON GIC 系列 7路 7.62mm节距 1828728, 焊接端接, 12A
Conn Wire to Board HDR 7 POS 7.62mm Solder RA Thru-Hole
得捷:
TERM BLOCK HDR 7POS 90DEG 7.62MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON GIC 系列 7路 7.62mm节距 1828728, 焊接端接, 12A
艾睿:
This wire to board 1828728 header connector from Phoenix Contact is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector has 7 contacts that are plated with tin. It has a maximum voltage rating of 630 V. It has a right angle body orientation. This is a 1-row connector. It has a header type gender. Its pitch is 7.62 mm. This device has a maximum current rating of 12 A. It uses the solder termination method. This product is 53.24 mm long, 10.2 mm tall and 19 mm deep. 1828728 is housed in green polyamide.
MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - number of positions: 7 - pitch: 7.62 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3
Online Components:
Conn Wire to Board HDR 7 POS 7.62mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - ...
