间距5.08 16位 插座 带法兰 12A 320V 直插
** Contact CLASSIC COMBICON MSTBV 5.08mm Terminal Block Headers**
Professional Phoenix Contact MSTBV series wire to board 5.08 mm pitch connector
得捷:
TERM BLOCK HDR 16POS VERT 5.08MM
艾睿:

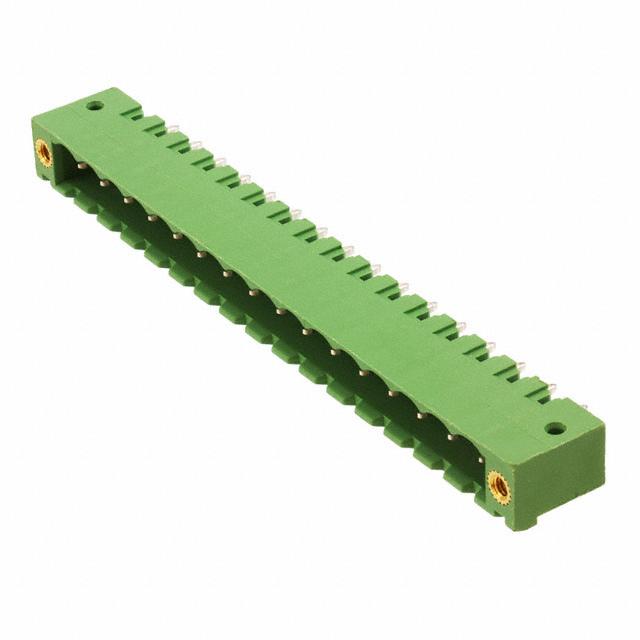

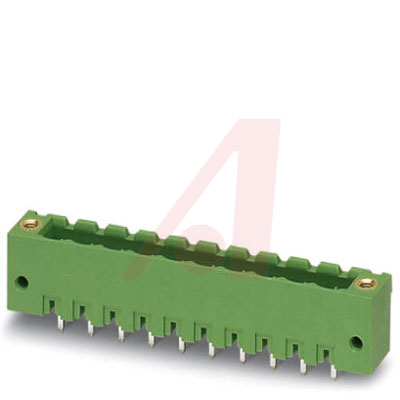

Phoenix Contact brings you their shrouded 1777219 header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector has 16 contacts that are plated with tin. It has a header type gender. This is a 1-row connector. It has a maximum voltage rating of 320 V. It has a straight body orientation. Its pitch is 5.08 mm. This device has a maximum current rating of 12 A. This product is 91.44 mm long, 12 mm tall and 8.3 mm deep. It uses the solder termination method. 1777219 is housed in green polybutylene terephthalate.
Allied Electronics:
PC terminal block, Header, Nominal current: 12 A, 16 positions
Verical:
Conn Shrouded Header 4 Sides HDR 16 POS 5.08mm Solder ST Top Entry Thru-Hole
MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 16 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]:
Online Components:
Conn Shrouded Header HDR 16 POS 5.08mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
触点数 16
触点电镀 Tin
额定电流 12 A
排数 1
易燃性等级 UL 94 V-0
针脚数 16
安装角度 180 °
额定电流Max 12 A
额定电压Max 320 V
安装方式 Through Hole
封装 无
引脚间距 5.08 mm
长度 91.4 mm
宽度 8.60 mm
高度 12 mm
封装 无
引脚间距 5.08 mm
外壳颜色 Green
颜色 Green
触点材质 Copper Alloy
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
