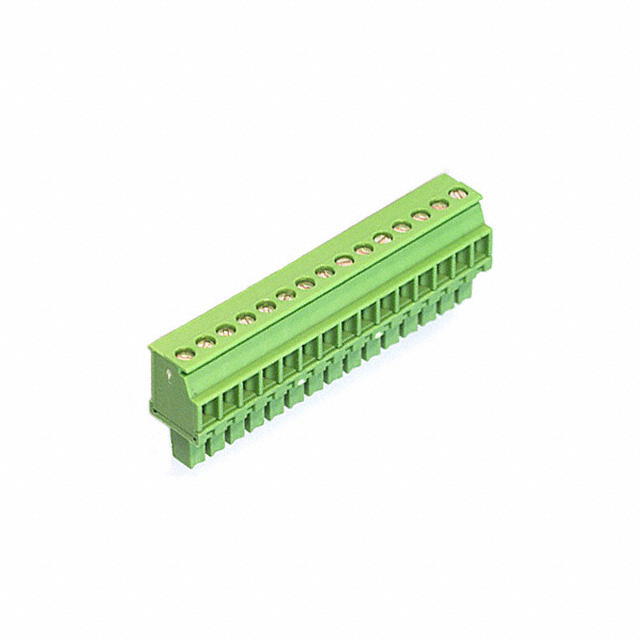

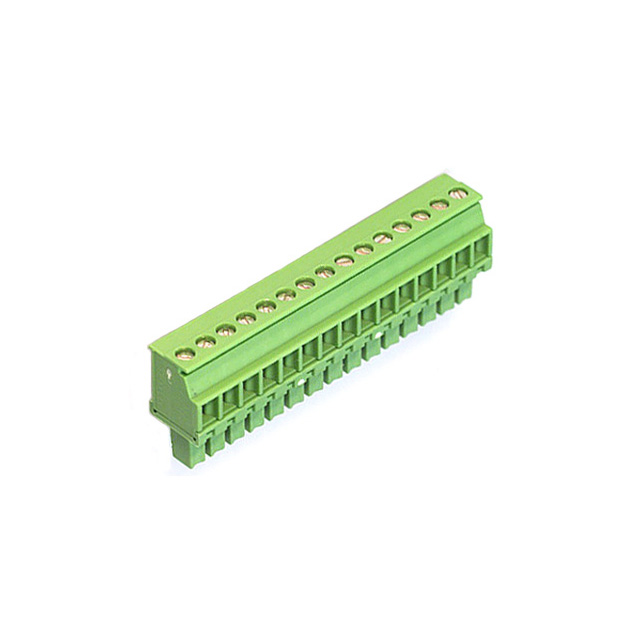

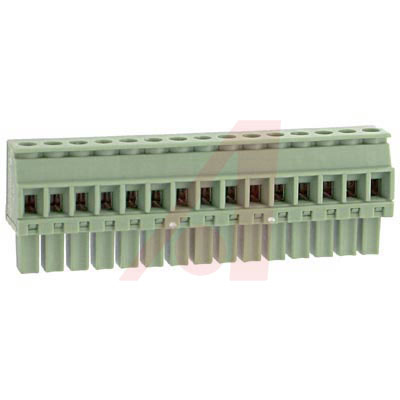

1827101

间距3.81 15位 插头 8A 160V 螺钉式 配线28-16AWG0.14-1.5mm²

**Features:**

* Polyamide Insulating Material

* Voltage: 300, Amps: 8, AWG: 30-14

* Plug-In Direction Vertical to the Conductor Axis

* Can Be Placed Close to Neighboring Walls and Removed from Above without Compressing the Connected Lines

* Connection Point Facing the Ripped Side of the Header

得捷:
TERM BLOCK PLUG 15POS 3.81MM

贸泽:
可插拔接线端子 15 Pos 3.81mm pitch Plug 28-16 AWG Screw

艾睿:
Joining multiple circuits is easy with this 1827101 PCB terminal block from Phoenix Contact. This F connector has 15 contacts that are plated with tin. It has a female type gender. Its pitch is 3.81 mm. This is a 1-row connector. It has a maximum voltage rating of 160 V. It has a straight body orientation. 1827101 is housed in polyamide. This device has a maximum current rating of 8 A. This product is 57.94 mm long, 19.1 mm tall and 10.4 mm deep. It uses the screw termination method. Its wire is 16-28 AWG.

Allied Electronics:
Plug; Terminal Block; 8 A; 160 V; 3.81 mm; 15; Screw; 2.5 kV; 160 V; Polyamide

MASTER:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 15 - pitch: 3.81 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
