C 型，IDC插座连接器 C 型 64 引脚（ac 行）和 96 引脚（abc 行） 间接插入系统，2.54mm 栅格 双支脚弹簧触点 固定在导向框架上的带状电缆，能够借助基本工具压入至 IDC 插座连接器 Operating current at | | ---|---|--- Ambient temperature | +20°C 2A, +70°C 1.5A, +100°C 1A | Flame retardance | UL 94 V0 | Housing material | C64 PBTP 30% GV | C96 PBTP 30% GV Contact material | C64 Tin bronze | C96 Phosphor Bronze ### 标准DIN 41612-2，IEC 603-2### DIN41612 - ERNI Range
C 型，IDC
插座 C 型
64 引脚（ac 行）和 96 引脚（abc 行）
间接插入系统，2.54mm 栅格
双支脚弹簧触点
固定在导向框架上的带状电缆，能够借助基本工具压入至 IDC 插座连接器
工作电流 | |
---|---|---
环境温度 | +20°C 2A、+70°C 1.5A、+100°C 1A |
阻燃 | UL 94 V0 |
外壳材料 | C64 PBTP 30% GV | C96 PBTP 30% GV
触点材料 | C64 锡青铜 | C96 磷青铜
### 标准
DIN 41612-2，IEC 603-2
欧时:
DIN 41612 connector type 033117
艾睿:

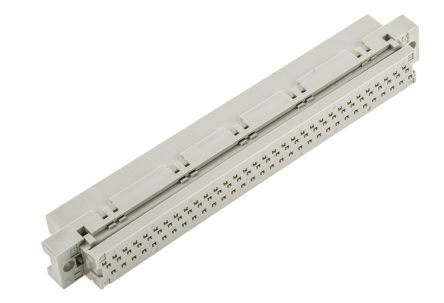

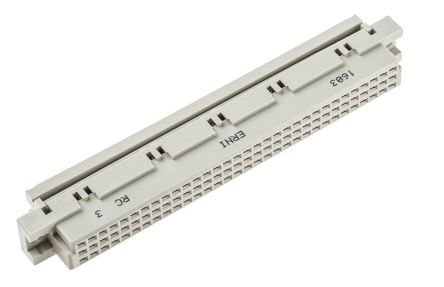

The din 41612 123905 backplane connector, developed by ERNI Electronics, can provide you with a much faster transfer rate as opposed to other types of connectors. This F connector&s;s 96 contacts that are made out of copper alloy and plated with gold. Its pitch is 2.54 mm. It has a right angle body orientation. This is a 3-row connector. It has a female type gender. This product is 95 mm long and 10.6 mm. This backplane connector has an operating temperature of -65 to 125 °C. It uses the idt termination method. 123905 is housed in polybutylene terephthalate.
