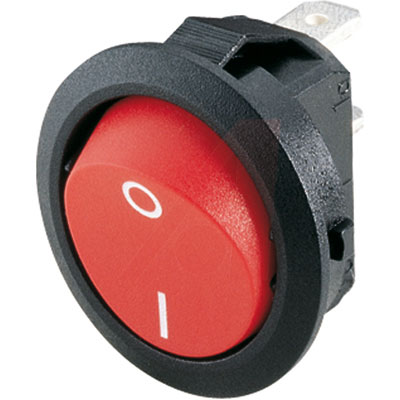

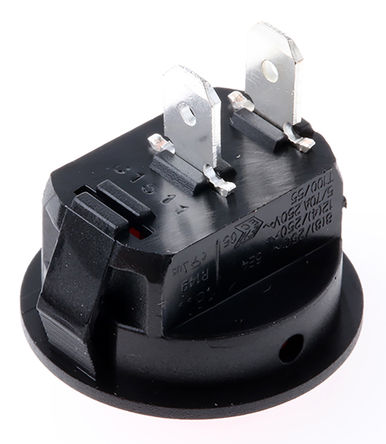

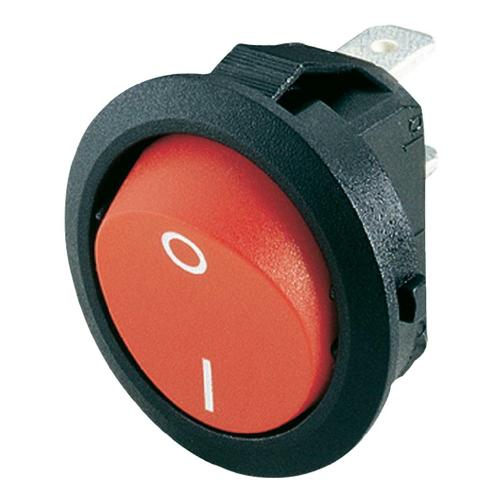

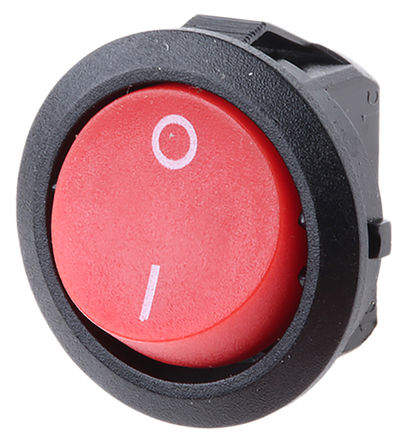

Marquardt 1881 系列摇臂开关Marquardt 1881 系列圆形单极单掷摇臂开关。 非照明式 1881 摇臂开关适用于 II 类设备，并采用耐磨 On-Off 图标。 圆形 20mm 直径切口，摇臂开关采用银触点，带 SPST（接通-断开）切换格式，触点电阻为 100MΩ。 通过 4.8mm Faston/快速连接型插片接线端子进行电气连接。高浪涌电流（电容性），高达 70A 23mm 直径 触点距离 ≥3 mm 操作力 3N UL 94 V-2 易燃性等级（除了具有 UL 94 V-0 额定值的库存号 575-131 以外） ### 注库存号 575-131 符合家用电器标准 IEC/EN 60335-1:2001/2002 第 30 章。 所述的额定电流和预期寿命数据是标称值。有关更多额定值的信息，请参见数据表。### 认可UL; CSA; ENEC### Marquardt 摇臂开关
has been a successful, international and independent family enterprise for 90 years. We are a leading manufacturer in the field of electro-mechanical and electronic switches and switching systems. Our products are used by many well-known automobile manufacturers and our systems are also found in household appliances and other industrial applications. In the field of power tool switches, we are the global market leader. “Quality is when the customer returns, not the product“ is the Marquardt way of thinking.
**Product Features for Series 1881 – Single Pole Round Rocker Switches**
* Attractive design
* High mechanical rating with at least 100,000 switching cycles
* Variants with IP51
* Low depth with 18.7 mm
* Appliance cut-out with 20mm
* IP40 and IP51 product dependent
* On request: other colors, other printing variants, other terminal variants, cable assembly, gold-plated contacts for low voltages, other switching functions eg: 1888-middle off, painted variants
