Marquardt IP40 & IP67 防水咬接式超小型微动开关 - 1055 系列Marquardt 1055 系列咬接式单极开关。 1055 系列咬接式开关具有紧凑型设计，防水和防尘保护切换系统达到 IP67 等级（库存号 741-0984 和 741-0993）或 IP40（库存号 741-0980）。 Marquardt 1055 系列触点电阻为 100MΩ，并提供带焊接或预接线端接的柱塞执行器。防水，IP67 等级，请参见库存号 741-0984 和 741-0993 特别设计的执行器指南可启动 40° 角 触点距离 UL 94 HB 易燃性 库存号 741-0980 和 741-0984 在开关主体右侧上有 1.5mm 长的安装引脚 库存号 741-0993 在开关主体两侧均有 2.5mm 长的安装引脚 ### 注负载额定值是电阻性负载，该值和预期寿命数据是标称值。有关详细信息，请参见数据表。### 微型与超微型开关类型： | 开关单刀双掷 ---|--- 连接： | 铲形电缆靴 6.3 ´ 0.8 mm， 189157：虽然 4.8 ´ 0.5 mm 开关材料： | 银 机械寿命： | 30 ´ 106 能最大限度地运作 触点负载 温度范围： | -55°C* 至 +85°C 尺寸： | （参见附图）
has been a successful, international and independent family enterprise for 90 years. We are a leading manufacturer in the field of electro-mechanical and electronic switches and switching systems. Our products are used by many well-known automobile manufacturers and our systems are also found in household appliances and other industrial applications. In the field of power tool switches, we are the global market leader. “Quality is when the customer returns, not the product“ is the Marquardt way of thinking.

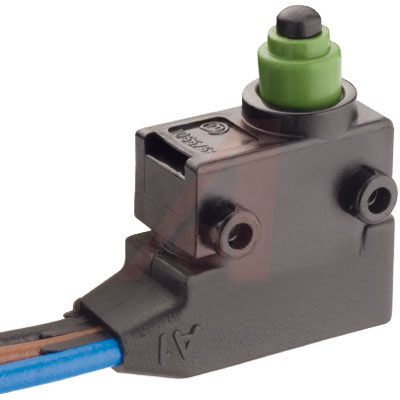

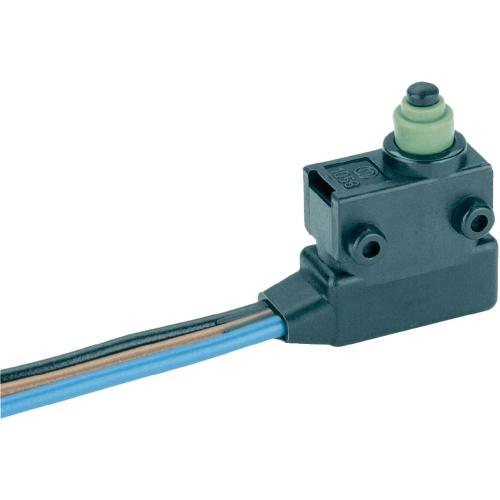

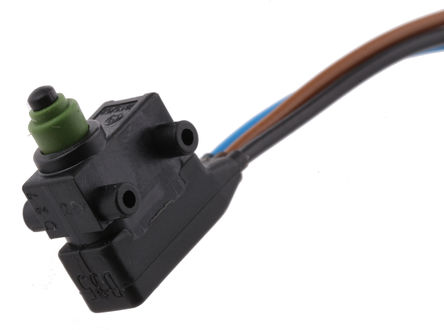

Series 1055- Subminiature Snap-Action Switches IP67
**Product Features:**
* Compact design with dust and water protected switching system acc. To IP 67
* Large overtravel of >1.2 mm for small size
* The specially designed pushbutton guide enables a start-up angle of 40 deg.
* The modular principle offers a wide selection of terminals, auxiliary actuators and fastening types
* On request: Rating of 0.5 1.5 A @ 250VAC 25E3 and ENEC approval mark, for higher ambient
