151-75209

WPC 推入式电线夹多功能电线夹，允许插入多条单线。尺寸 mm --- **类型** | **A** | **B** | **C** | **E** | **F** 187-6678 | 12.7 | 15 | 5.3 | 5.5 | 11 187-6690 | 17.7 | 15 | 5.3 | 10.5 | 11 187-6707 | 22.7 | 15 | 5.3 | 15 | 11 187-6713 | 27.7 | 15 | 5.3 | 20 | 11 ### 电缆和电线安装件

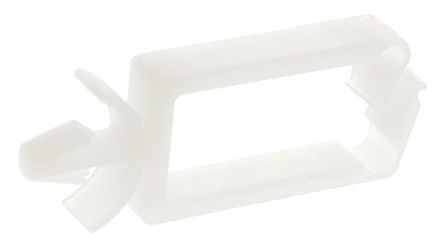

The WPC20-N66-NA-D1 is a natural Wire Push-in Clip made of polyamide 6.6 PA66. The shape of the clip ensures that it can accept either single or multiple cables, whilst the design of the cable entry allows cables to be simply pushed into place. The self-locking feature ensures that once inside the clip the wires cannot be removed accidentally. The arrow-head fixing design ensures simple and secure installation and only needs access to the panel from one side. With the increased complexity of electronic and electrical installations the use of the WPC clip enables cables to be installed using the minimum amount of space and a typical application would be in the frames/rails of control cabinets.

WPC20-PA66-NA 500

.

Simply push wires into place

.

Self-locking to prevent accidental removal

.

Access to panel from one side

.

UL94V-2 Flammability
