Marquardt 咬接式超小型微动开关 - 1050 系列Marquardt 1050 系列咬接式单极开关。 1050 系列是咬接式超小型微动开关，主体宽度为 6.4mm，设计符合 DIN41635B。其触点电阻为 100MΩ。 Marquardt 1050 系列提供各种执行器和接线端子。触点距离 弹跳时间 UL 94 V-2 易燃性 ### 注所述的额定电流和预期寿命数据是标称值。有关更多额定值的信息，请参见数据表。### 认可UL; CSA; ENEC### 微型与超微型开关类型： | 开关单刀双掷 ---|--- 连接： | 铲形电缆靴 6.3 ´ 0.8 mm， 189157：虽然 4.8 ´ 0.5 mm 开关材料： | 银 机械寿命： | 30 ´ 106 能最大限度地运作 触点负载 温度范围： | -55°C* 至 +85°C 尺寸： | （参见附图）
has been a successful, international and independent family enterprise for 90 years. We are a leading manufacturer in the field of electro-mechanical and electronic switches and switching systems. Our products are used by many well-known automobile manufacturers and our systems are also found in household appliances and other industrial applications. In the field of power tool switches, we are the global market leader. “Quality is when the customer returns, not the product“ is the Marquardt way of thinking.

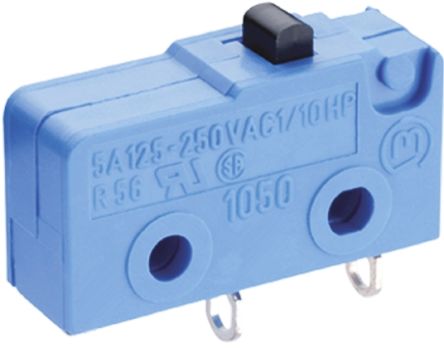

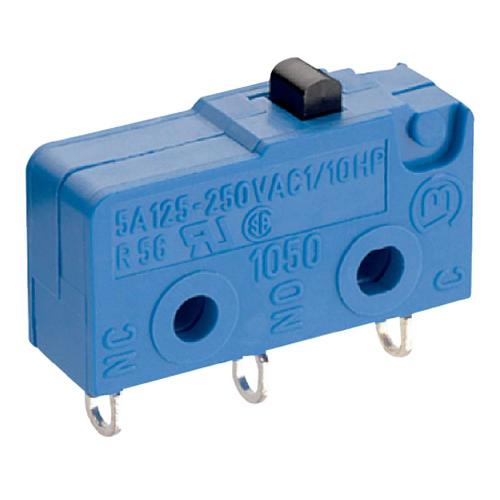

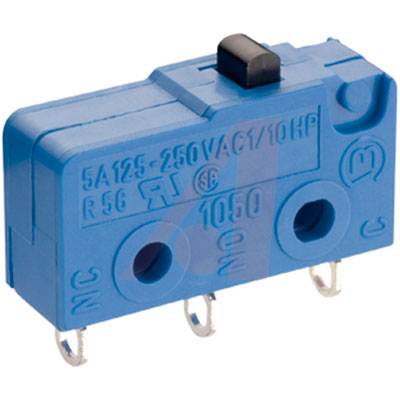

Series 1050- Subminiature Snap-Action Switches
**Product Features:**
* Small, efficient snap-action switches up to 10 1.5 A @ 250 VAC or 10.1 A @ 125-250 VAC 1⁄4 HP
* Lateral approach from both directions possible due to mushroom shaped actuator
* Large selection of auxiliary actuators of chrome nickel steel and plastic
* IP40 actuator side only
* On request: Extended overtravel, material conformant with the filament wire test acc. To IEC
