Delphi Metri-Pack 150 Sealed Female Automotive Switch Device ConnectorMetri-Pack 150 sealed female automotive switch device connector with triple rib silcone rubber seals for environemntal protection. This Metri-Pack 150 sealed female automotive switch device connector has a llow energy, low voltage capability, a maximum continuous current of 14 A, offers a high resistance to chemicals and abrasion and withstands a wide temperature range of -40 to 125°C. For suitable crimp terminals see stock numbers 801-0957 and 801-0951. For suitable cable seals and cavity plugs see stock numbers 801-0973 and 801-0967 typically. A secondary TPA lock is also available, see stock number 801-1014### 标准Metri-pack 150 series automotive connectors can meet or exceed the the requirements of most marine, appliance and industrial control applications.### Delphi Metri-Pack 150 Series Automotive Connectors

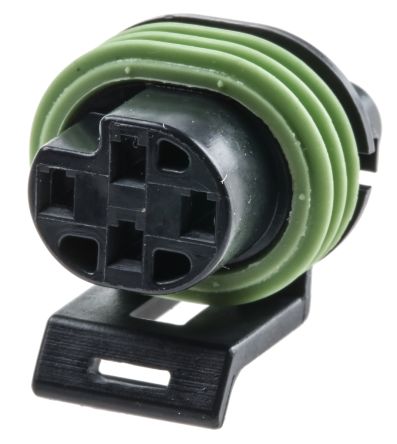

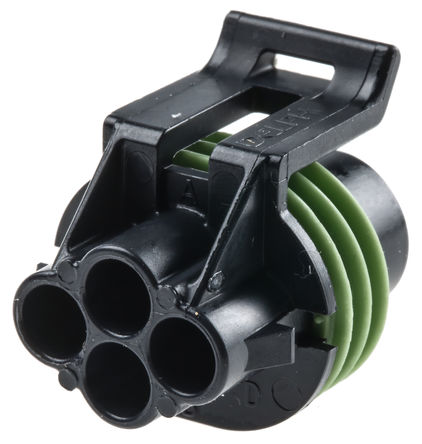

Metri-Pack 150 Sealed Female Automotive Switch Device Connector

Metri-Pack 150 sealed female automotive switch device connector with triple rib silcone rubber seals for environemntal protection. This Metri-Pack 150 sealed female automotive switch device connector has a llow energy, low voltage capability, a maximum continuous current of 14 A, offers a high resistance to chemicals and abrasion and withstands a wide temperature range of -40 to 125°C.

For suitable crimp terminals see stock numbers 801-0957 and 801-0951. For suitable cable seals and cavity plugs see stock numbers 801-0973 and 801-0967 typically. A secondary TPA lock is also available, see stock number 801-1014

### 标准

Metri-pack 150 series automotive connectors can meet or exceed the the requirements of most marine, appliance and industrial control applications.

### Delphi Metri-Pack 150 Series Automotive Connectors

12065298中文资料参数规格
技术参数

触点数 4

极性 Female

额定电流 14 A

排数 1

针脚数 4

额定电流Max 14 A

工作温度Max 125 ℃

工作温度Min -40 ℃

外形尺寸

宽度 22.3 mm

高度 24.8 mm

物理参数

外壳颜色 Black

颜色 Black

材质 Nylon

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买12065298
型号: 12065298
制造商: Delphi 德尔福
描述:Delphi Metri-Pack 150 Sealed Female Automotive Switch Device Connector Metri-Pack 150 sealed female automotive switch device connector with triple rib silcone rubber seals for environemntal protection. This Metri-Pack 150 sealed female automotive switch device connector has a llow energy, low voltage capability, a maximum continuous current of 14 A, offers a high resistance to chemicals and abrasion and withstands a wide temperature range of -40 to 125°C. For suitable crimp terminals see stock numbers 801-0957 and 801-0951. For suitable cable seals and cavity plugs see stock numbers 801-0973 and 801-0967 typically. A secondary TPA lock is also available, see stock number 801-1014 ### 标准 Metri-pack 150 series automotive connectors can meet or exceed the the requirements of most marine, appliance and industrial control applications. ### Delphi Metri-Pack 150 Series Automotive Connectors
