121583-0026

ITT Cannon Connectors APD Series High Power Connectors 2 WayITT Cannon connectors APD series high power connectors 2 way are suitable for high power connector applications such as tail lifts and power supplies for antennas and base stations and heavy automotive connector uses. The APD series connectors small form and high power handling make them ideal for many applications. Durable hard wearing connectors derived from ISO 15170.Operating voltage 48 VDC Contact resistance 2 mΩ Voltage proof 1000Vac 60 secs Insulation resistance 10 MΩ min. Up to 50 mating cycles ### 注For socket contacts see: 752-5607 , 752-5593 , 752-5597 , for Pin contacts see: 752-5587 , 752-5590 , 752-5581 Wire seal see: 752-5600 , Endbells: 752-5569 , 752-5565, flange gasket where applicable :752-5562 and Cable sealing set: 752-5604 , 752-5613 . APD series hand crimp tool see: 752-5616### 标准DIN EN 60529, ISO 15170-2 sec.6.2, 6.3, 6.6, EN 60512### ITT Cannon APD Series ISO 15170 ConnectorsThe ITT Cannon APD series of connectors are a versatile range of full plastic direct, in-line and bulkhead circular connectors, specifically designed for the transportation, off-road and special vehicle markets. These circular connectors have a strong resistance to engine transmission and brake fluids and the associated environments. The APD series is also an ideal connector for other applications including military or industrial that require harsh environment solutions while insisting on a product that is both small in size and lightweight.The APD series of connectors cover a wide range of 1 and 2-way power solutions up to 51-way interface connectors.

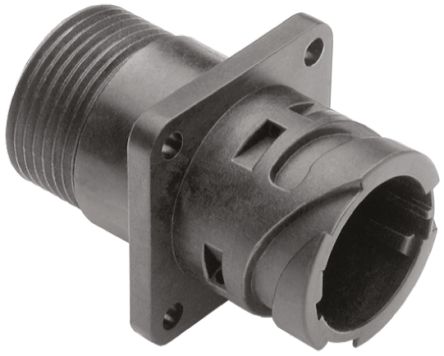

Connectors APD Series High Power Connectors 2 Way

ITT Cannon connectors APD series high power connectors 2 way are suitable for high power connector applications such as tail lifts and power supplies for antennas and base stations and heavy automotive connector uses. The APD series connectors small form and high power handling make them ideal for many applications. Durable hard wearing connectors derived from ISO 15170.

Operating voltage 48 VDC

Contact resistance 2 mΩ

Voltage proof 1000Vac 60 secs

Insulation resistance 10 MΩ min.

Up to 50 mating cycles

### 注

For socket contacts see: 752-5607 , 752-5593 , 752-5597 , for Pin contacts see: 752-5587 , 752-5590 , 752-5581 Wire seal see: 752-5600 , Endbells: 752-5569 , 752-5565, flange gasket where applicable :752-5562 and Cable sealing set: 752-5604 , 752-5613 . APD series hand crimp tool see: 752-5616

### 标准

DIN EN 60529, ISO 15170-2 sec.6.2, 6.3, 6.6, EN 60512
