ITT Neptune### NeptuneBased on Trident Ringlok series, the Neptune range combines power and signal contacts. Widely used in automotive, marine and process control industries, they feature a strong bayonet coupling system with standard and reversed pin/socket combinations. A wide selection of backshell accessories, rear housings and dust caps are available.,To maintain IP67 rating the rear of the connectors have a rubber seal which is pierced upon contact insertion. The seal is held in place by a screw ring as supplied which may be replaced with the appropriate size backshell. For IP67 rating to be maintained, wire insulation diameters should be within the following diameters: Signal wires: 1.7 to 2.7mm, Power wires : 2.7 to 4.0mm.,Number of contacts shown as power/signal eg 2//13.Current Rating single contact | 13A signal contacts, 30A power contacts ---|--- Voltage Rating | 30V Contact Resistance | 5mΩ max Test Voltage | 2000V rms Insulation Resistance | 5000MΩ min. at 500V dc Operating Temperature | -55 → +120ºC Seals | Rubber Housings | Nylon to UL94 V-0 Coupling Rings | Nickel plated brass or plastic version Contacts | High conductivity copper alloy Contact Plating | Gold contact area Mating Cycles | Dimensions mm --- | Shell 24 | Shell 16 | Shell 14 Dia mm | 43.2 | 30.5 | 28.5 Hole dia. to flat | 41.5 | 28.0 | 24.5

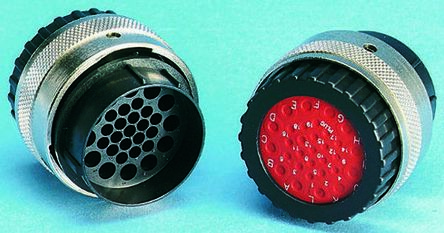

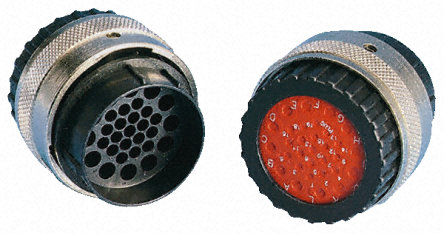

Trident Neptune 电缆，带塑料耦合环
的 Trident 连接器系统设计用于在恶劣环境中使用。此连接器具有薄膜电线密封和防腐蚀塑料联轴环，特别适合用于室外电子产品和汽车应用。
### 注
电缆安装插头仅与面板插座配用，电缆安装插座仅与面板插头配用。 插头接受引脚触点，插座接受插座触点。
得捷:
TRI N PLUG M PLAS 2-13
欧时:
192900-0561 ITT Cannon 电缆安装 连接器 Neptune Circular 系列 15路, 公芯 直向 插头
立创商城:
192900-0561
Allied Electronics:
13/2 way plastic ring cable plug, 13A/30A
MASTER:
Conn Circular PIN 15 POS Crimp ST Cable Mount 15 Terminal 1 Port Individual
Electro Sonic:
Conn Circular PIN 15 POS Crimp ST Cable Mount 15 Terminal 1 Port Individual
