Connectors APD Series Flange Receptacles 4 Way

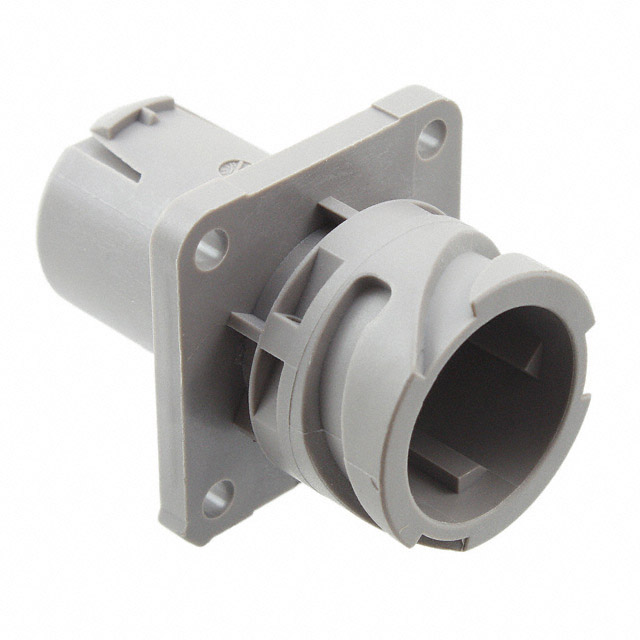

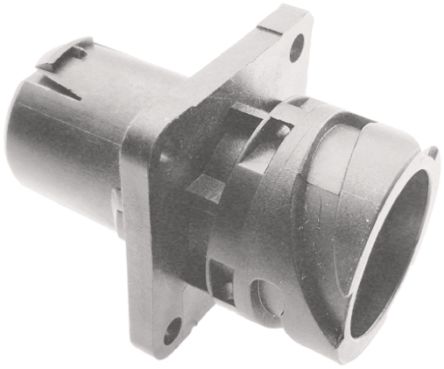

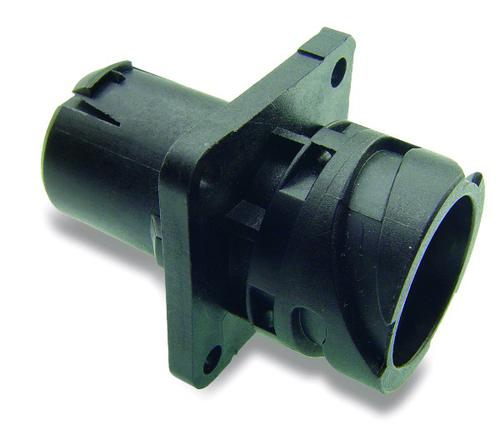

ITT cannon connectors APD series flange receptacle connectors 4 Way are suitable for connector applications such as sensor and traction/brake control systems, lighting systems and other automotive connector uses. The APD series receptacle connectors small form and high power handling make them ideal for many applications. Durable hard wearing connectors derived from ISO 15170.
Operating voltage 48VDC
Contact resistance 5mΩ max
Voltage proof 1000Vac 60 secs
Insulation resistance 10Ω min.
### 注
Pins contacts:752-5676 , 752-5685 EndBells link: 752-5688 , 752-5691, 752-5682 , 752-5694 wire seals: 752-5698 , 752-5708 , Wire filler RS 752-5701, Gasket RS 752-5562 crimp tool 752-5705
### 标准
DIN EN 60529, ISO 15170-2 sec.6.2,6.3,6.4,6.6
