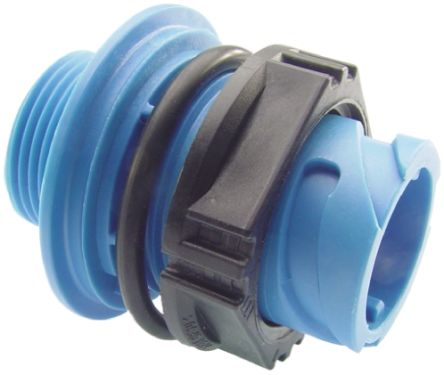

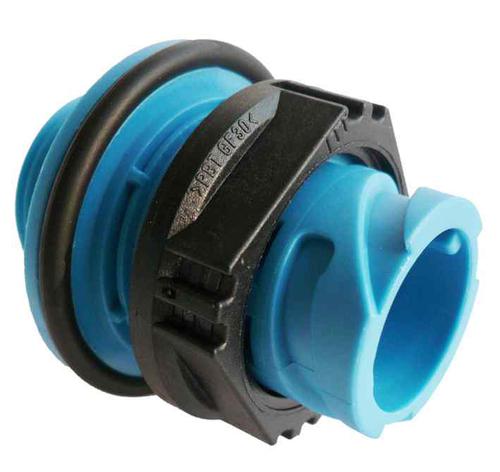

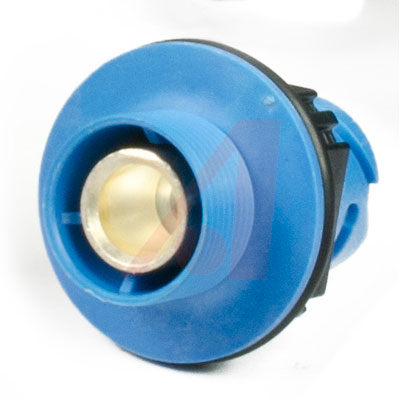

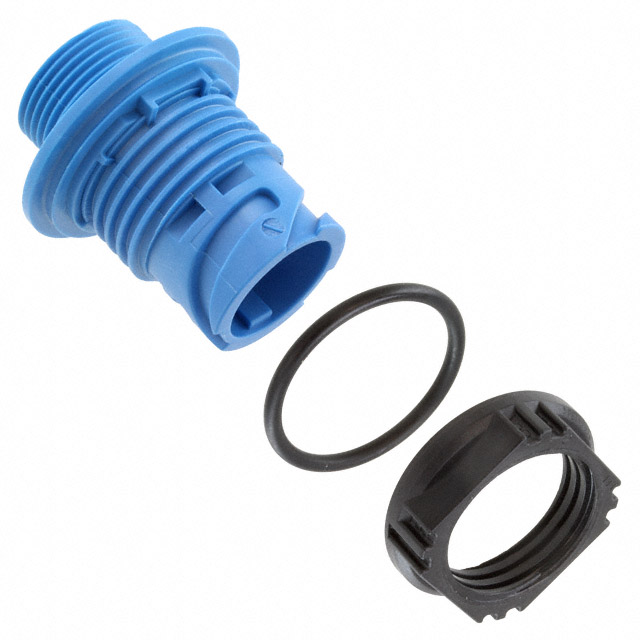

Connectors APD Series High Power Jam Nut Receptacle 1 Way
ITT Cannon connectors APD series high power jam nut receptacles 1 way are suitable for high power connector applications such as tail lifts and power supplies for antennas and base stations and heavy automotive connector uses. The APD series connectors small form and high power handling make them ideal for many applications. Durable hard wearing jam nut receptacle connectors derived from ISO 15170.
Operating voltage 48 VDC
Contact resistance 0.4 mΩ
Voltage proof 1000Vac 60 secs
Insulation resistance 10 MΩ min.
Up to 50 mating cycles
### 注
For Pin contacts see 752-5534 , 752-5537 , 752-5519 , 752-5528 , for Cable seals see 752-5556 , 752-5559 , 752-5543 ,752-5547 , for Hex Nut see 752-5553 and for Endbells see 752-5569 , 752-5565
### 标准
DIN EN 60529, ISO 15170-2 sec.6.2, 6.3, 6.6, EN 60512
