12146AK参数规格_中文资料_数据手册PDF

12146AK概述

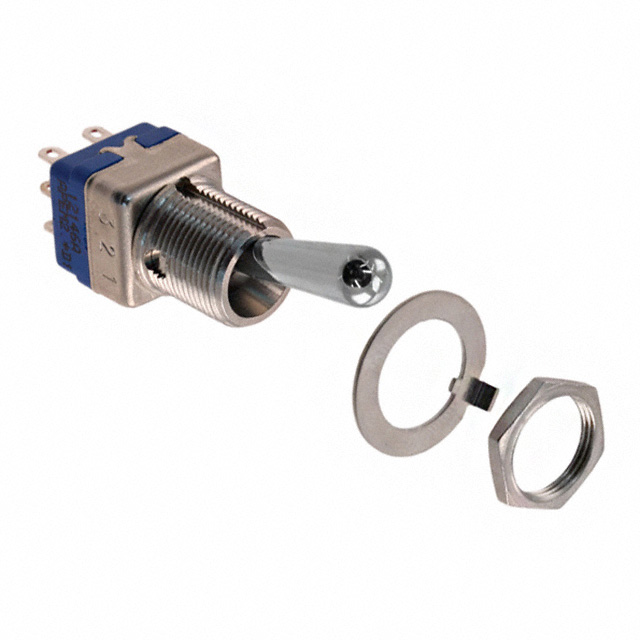

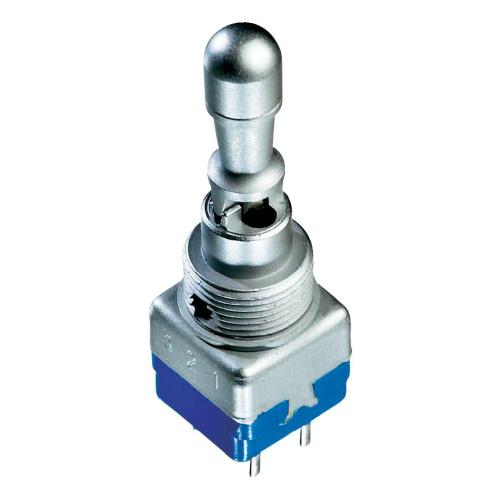

Switch Toggle ON ON DPDT Round Lever Solder Lug 4A 250VAC 30VDC Panel Mount with Threads

贸泽:
Toggle Switches DPDT ON-ON SOLDER

Chip1Stop:
Switch Toggle ON ON DPDT Round Lever Solder Lug 4A 250VAC 30VDC Panel Mount with Threads

Verical:
Switch Toggle ON ON DPDT Round Lever Solder Lug 4A 250VAC 30VDC Panel Mount with Threads

MASTER:
Switch Toggle ON ON DPDT Round Lever Solder Lug 4A 250VAC 30VDC Panel Mount with Threads

Online Components:
Switch Toggle ON ON DPDT Round Lever Solder Lug 4A 250VAC 30VDC Panel Mount with Threads

Electro Sonic:
Switch Toggle ON ON DPDT Round Lever Solder Lug 4A 250VAC 30VDC Panel Mount with Threads

12146AK中文资料参数规格

技术参数

额定电压DC 30 V

额定电流 4A AC, 4A DC

额定电流Max 4 A

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压DC Max 30 V

额定电压AC Max 250 V

接触电阻Max 10 mΩ

外形尺寸

长度 18.2 mm

宽度 18.2 mm

高度 46.9 mm

物理参数

触点材质 Silver

工作温度 -40℃ ~ 85℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买12146AK

型号： 12146AK

制造商： Apem Components

描述：Switch Toggle ON ON DPDT Round Lever Solder Lug 4A 250VAC 30VDC Panel Mount with Threads
