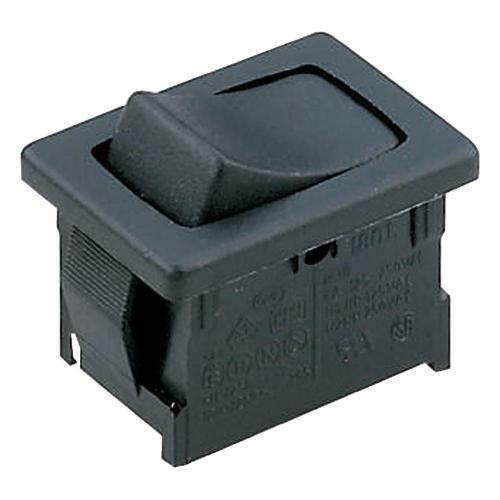

1801.6102图片2
1801.6102图片3

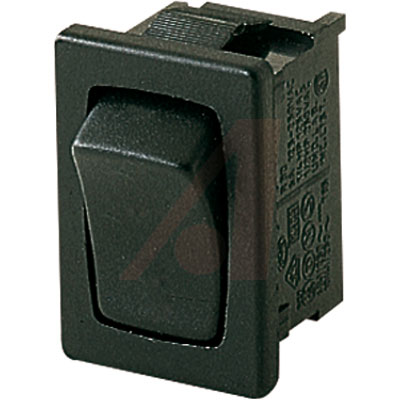

1801.6102图片4
1801.6102图片5
1801.6102概述

Switch Rocker ON OFF SPST Solder Rocker 10A 250VAC 372.85VA 100000Cycles

has been a successful, international and independent family enterprise for 90 years. We are a leading manufacturer in the field of electro-mechanical and electronic switches and switching systems. Our products are used by many well-known automobile manufacturers and our systems are also found in household appliances and other industrial applications. In the field of power tool switches, we are the global market leader. “Quality is when the customer returns, not the product” is the Marquardt way of thinking.

**Product Features for Series 1800 – Single and Double Pole Rocker Switches**

* 100 million times proven switching principle

* High, flexible design variety

* Illuminated and Non-Illuminated

* IP40

* On request: other colors, other printing variants, other lamp variants, snap-on, customized actuators, cable assembly

1801.6102中文资料参数规格
技术参数

排数 1

额定电流Max 10A @250VAC

额定功率Max 372.85 VA

工作温度Max 55 ℃

工作温度Min -20 ℃

额定电压 250 VAC

额定电压AC Max 250 V

接触电阻Max <100 mΩ

封装参数

安装方式 Solder

外形尺寸

长度 21 mm

高度 21.3 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Silver

工作温度 -20℃ ~ 55℃

其他

产品生命周期 Unknown

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买1801.6102
型号: 1801.6102
制造商: Marquardt
描述:Switch Rocker ON OFF SPST Solder Rocker 10A 250VAC 372.85VA 100000Cycles
