1803.1121

1803.1121图片1

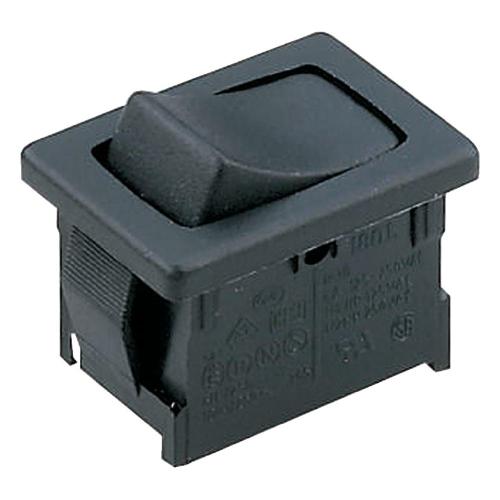

1803.1121图片2
1803.1121图片3

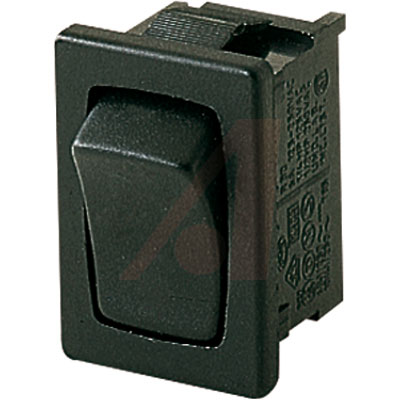

1803.1121图片4
1803.1121图片5
1803.1121概述

6 A / 10 A 250 V 开-关 面板安装 快速连接 摇臂开关

has been a successful, international and independent family enterprise for 90 years. We are a leading manufacturer in the field of electro-mechanical and electronic switches and switching systems. Our products are used by many well-known automobile manufacturers and our systems are also found in household appliances and other industrial applications. In the field of power tool switches, we are the global market leader. “Quality is when the customer returns, not the product” is the Marquardt way of thinking.

**Product Features for Series 1800 – Single and Double Pole Rocker Switches**

* 100 million times proven switching principle

* High, flexible design variety

* Illuminated and Non-Illuminated

* IP40

* On request: other colors, other printing variants, other lamp variants, snap-on, customized actuators, cable assembly

1803.1121中文资料参数规格
技术参数

额定电流 10 A

排数 1

额定电流Max 10A @250VAC

额定功率Max 372.85 VA

工作温度Max 55 ℃

工作温度Min -20 ℃

额定电压 250 VAC

接触电阻Max <100 mΩ

外形尺寸

长度 21 mm

高度 23.3 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Silver

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买1803.1121
型号: 1803.1121
制造商: Marquardt
描述:6 A / 10 A 250 V 开-关 面板安装 快速连接 摇臂开关
