1908

AIM-TTI INSTRUMENTS  1908  台式数字万用表, 交流/直流电流、交流/直流电压、电容、连续性、二极管、频率、电阻、温度, 10 A, 10 A, 750 V, 1 kV, 1 kohm 新

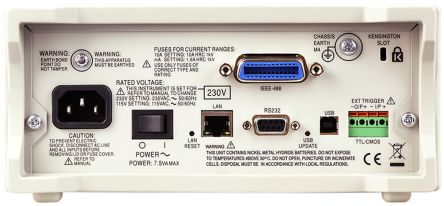

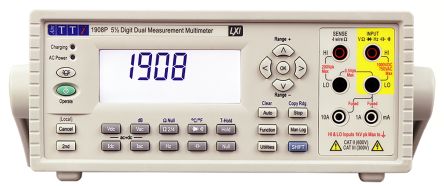

The from is a dual measurement bench multimeter with USB, RS232, LXI/LAN and GPIB interfaces. The 1908 has both a main display and a secondary display. The two displays can be used for a variety of purposes such as to display a measurement along with the selected range e.g. 100VDC, to display a measurement in two different units e.g. AC volts and dBm, to display the result of a calculated function e.g. value and % deviation, to measure and display two parameters of one signal e.g. AC and DC volts, to measure and display two different signals e.g. AC volts and DC current. It features continuity and diode test, automatic or manual ranging, linear scaling with offset, dB measurements, limits comparison, percentage deviation %, min-max storage, power measurement in watts or VA, automatic data logging and external triggering.

.

Affordable 5.5 digit high performance bench/portable multimeter

.

Dual display and dual measurement capability

.

Mains power or internal rechargeable batteries for true portability

.

High accuracy and resolution of 0.02%, 1µV, 1nA, 1mohm

.

True RMS AC, frequency, capacitance and temperature measurements

.

Wide range of computing functions e.g. Ax + B

.

Software for remote control and logging included

.

Operates from either AC-line power or internal batteries

.

Complies with EN61010-1 2010 and EN61010-2-030 2010 and complies with EN61326 standard

.

Dimension is 260mm x 88mm x 235mm
