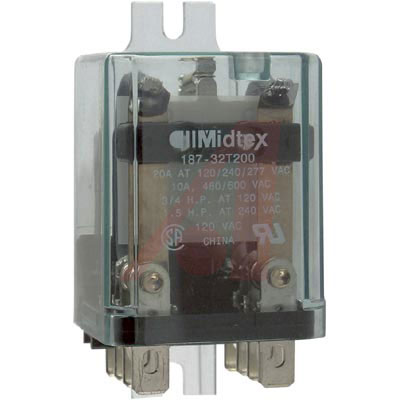

Power Relay 120VAC 20A DPDT 73.66mm 38.74mm 35.56mm Flange
Silver Cadmium Oxide Contact , General Purpose Relay
187 Series 20-25 Amp Power Relays
* Coil Voltages: 6-240 VAC 50/60 Hz., 6-110 VDC
* One or Two Pole Models with Single or Double Throw Contacts
* Contacts: 2 Form A or 2 Form B Contact Relays Are Rated 25 A; Other Contact Arrangements Are Rated 20 A
* 0.250" Combination Quick Connect/Solder Terminals or PC Terminals
* Mounting Options Include; Stud, Core, Bracket, Flange, PC Board
* Relays Available Open-Style or with Dust Cover
额定电流 20 A
触点类型 DPDT
触点额定电流 20.0 A
线圈电压AC 120 V
线圈电阻 1.7 KΩ
载流 20.0 A
额定电流Max 20 A
开关电流Max 20 A
工作温度Max 45 ℃
工作温度Min -45 ℃
额定电压 600 VAC
额定电压DC Max 28 V
额定电压AC Max 240 V
安装方式 Plug In
引脚数 8
高度 35.56 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 45℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410020
