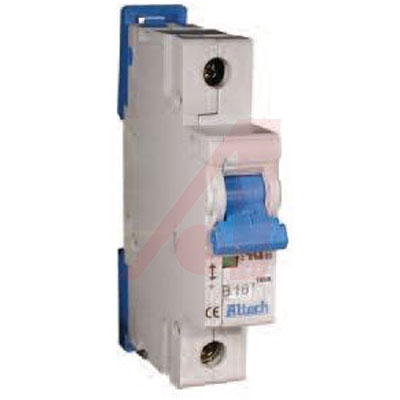

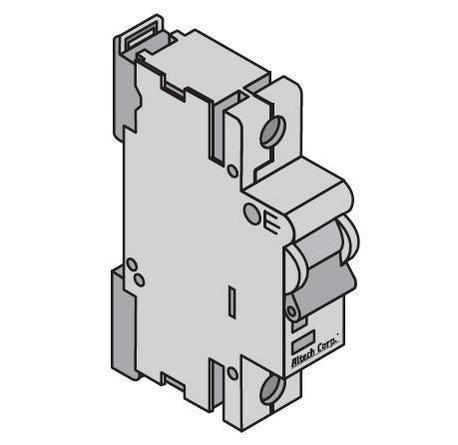

Circuit Breaker; Therm/Mag; Togl; Cur-Rtg 32A; DIN Rail; 1Pole; Vol-Rtg 480Y/277VAC; B
The R Series of miniature circuit breakers from offer a compact solution to your protection requirements. These miniature breakers are current limiting, DIN rail mounted and can offer a good equivalent to fused systems. Application specific trip curves of B, C, and D, provide maximum circuit protection. A wide range of accessories will complete the installation including shunt trips, auxiliary contacts, alarm contacts, undervoltage release, busbars and more.
**Features:
**
* Recognized Supplementary Protector
* Use as Overcurrent Protection
* UL1077 — E301611
* Finger Safe Terminals**
**
* DIN Rail Mounted
* 17.5 mm Width Per Pole
* Thermal Magnetic
* 480Y/277 VAC, 50/60 Hz
* 10 kA Short Circuit Withstand Capability
* Positive Trip Indicator Green — Off/Tripped, Red — On
* Applications On the Load Side of Branch Circuit Protection Include: Sensitive Electronics, Power Supplies, Appliance Circuits, Etc.
* Line and Load Terminals Included
