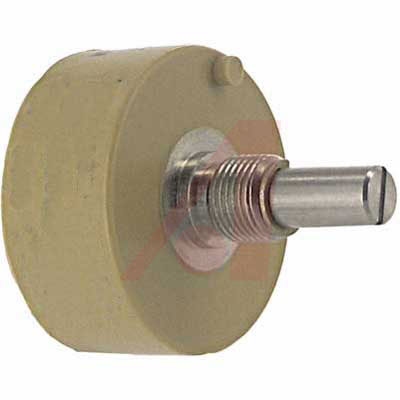

132B00301

Pot; Wirewound; Rest 300Ω; Panel; 1 Turn; Linear; Pwr-Rtg 2.75W; Shaft Dia 0.2497In

Thermoplastic housing with nickel-plated brass bushing and 1⁄4" dia. stainless steel shaft. Solderable brass terminals. Wirewound element. Moisture resistant.

.

*Power Rating at 40°C:** 2.75 Watts. **Resistance Tolerance:** 3%. **Linearity Tolerance:** 0.5%. **Operating Temperature:** –55°C to +125°C. **Dimensions: **1.312"D × 0.625"L. **Rotational Life:** 500,000 Turns. **Weight:** 1.0 Oz.

Allied Electronics:
Pot; Wirewound; Rest 300 Ohms; Panel; 1 Turn; Linear; Pwr-Rtg 2.75W; Shaft Dia 0.2497In
