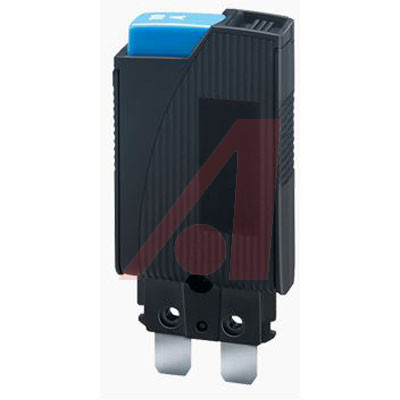

1180-02-5A

Circuit Breaker; Thermal; 1P; 5A; 250VAC/65VDC; Push; Socket Mnt; Blade Term

Miniaturized single-pole thermal circuit breaker with switching function optional push-push actuation. Equipped with reliable snap-action and trip-free mechanism. Blade terminals allow the 1180 to fit into sockets for rail mounting.

**Features:**

* Miniaturized Single-Pole Thermal Circuit Breaker with Optional Switching Function

* Blade Terminals

* Unit Is Only 8.2 mm Wide

**Specifications:**

* Voltage Ratings: 250 VAC, 72 VDC

* Current Ratings: 0.1 A to 10 A

* UL and VDE Approved

* Ambient Temperature: –4°F to 140°F

* Push-to-Reset, Trip-Free, Snap Action Mechanism
