12SWUDC概述

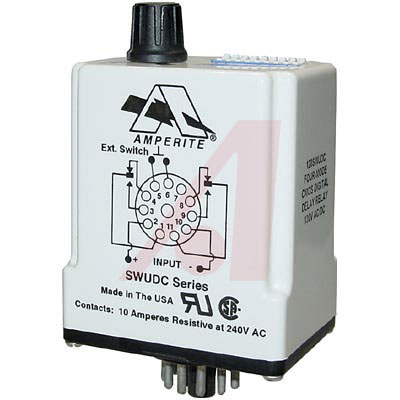

RelaySS CMOS Digital Multi-FunctionDPDT-NO/NC, 10A, 12V AC-DC
The SWUDC has CMOS digital circuitry with DPDT relay output.- .
- *Four Timing Modes:** Delay-on-operate, delay-on-release, delay-on-operate and release, and interval or one-shot all-in-one unit. **Timing Selection:** Binary coded DIP switch plus vernier knob adjustment. User selectable timing ranges covering 0.1 sec. to 77.5 hrs. UL File #E96739M. CSA File #LR62586. **Contact Rating:** 10 A @ 240 VAC res. **Operating Temperature Range:** –45°C to +70°C. **Mounting:** 11-Pin octal style plug. Spade terminal style available.
在线购买12SWUDC
