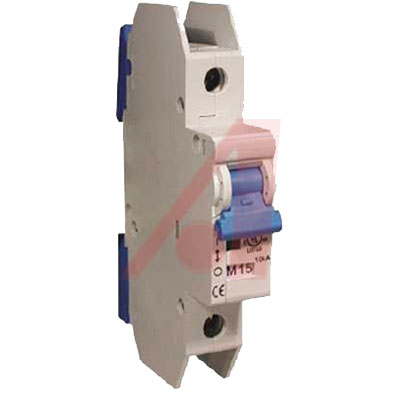

1CU30L

Circuit Breaker; Therm/Mag; Togl; Cur-Rtg 30A; DIN Rail; 1Pole; Screw Snap; C; 1CU30L

**C-Characteristic** — Thermal one-hour trip zone 1.05-1.3 times rated current RC: Magnetic 100 ms trip boundary 5 to 10 times RC.

* UL489 Listed for Branch Circuit Protection

* 1 Device with 2 Electrical Ratings:

0.5 A/240 VAC, 50.60 Hz

0.5 A/480 Y/277 VAC, 50/60 Hz

* 10 kA Interrupt Capacity

* 35 mm DIN Rail Mount

* Thermal Magnetic

* DC Versions Available: 125 V 1 Pole and 250 V 2 Pole

* Positive Trip Indicator Green-OFF/Tripped, Red-ON

* Line/Load Reversible

* HACR Type 40°C
