1801.1148

1801.1148图片1

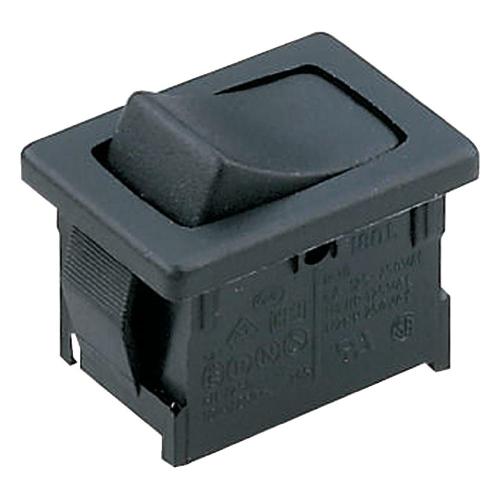

1801.1148图片2
1801.1148图片3

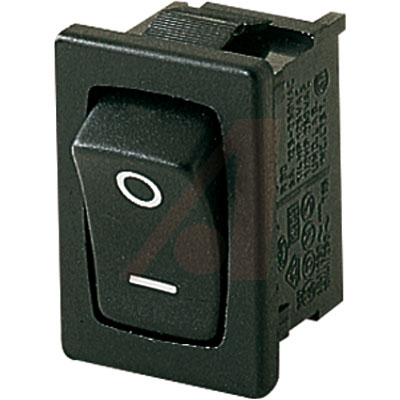

1801.1148图片4
1801.1148图片5
1801.1148概述

Switch Rocker ON OFF SPST Quick Connect Curved Rocker 15A 250VAC 559.27VA 100000Cycles

has been a successful, international and independent family enterprise for 90 years. We are a leading manufacturer in the field of electro-mechanical and electronic switches and switching systems. Our products are used by many well-known automobile manufacturers and our systems are also found in household appliances and other industrial applications. In the field of power tool switches, we are the global market leader. “Quality is when the customer returns, not the product” is the Marquardt way of thinking.

**Product Features for Series 1800 – Single and Double Pole Rocker Switches**

* 100 million times proven switching principle

* High, flexible design variety

* Illuminated and Non-Illuminated

* IP40

* On request: other colors, other printing variants, other lamp variants, snap-on, customized actuators, cable assembly

1801.1148中文资料参数规格
技术参数

排数 1

额定电流Max 15A @250VAC

额定功率Max 559.27 VA

工作温度Max 55 ℃

工作温度Min -20 ℃

额定电压 250 VAC

接触电阻Max <100 mΩ

外形尺寸

长度 21 mm

高度 23.3 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Silver

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买1801.1148
型号: 1801.1148
制造商: Marquardt
描述:Switch Rocker ON OFF SPST Quick Connect Curved Rocker 15A 250VAC 559.27VA 100000Cycles
