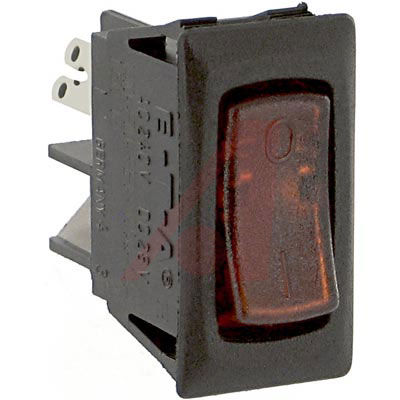

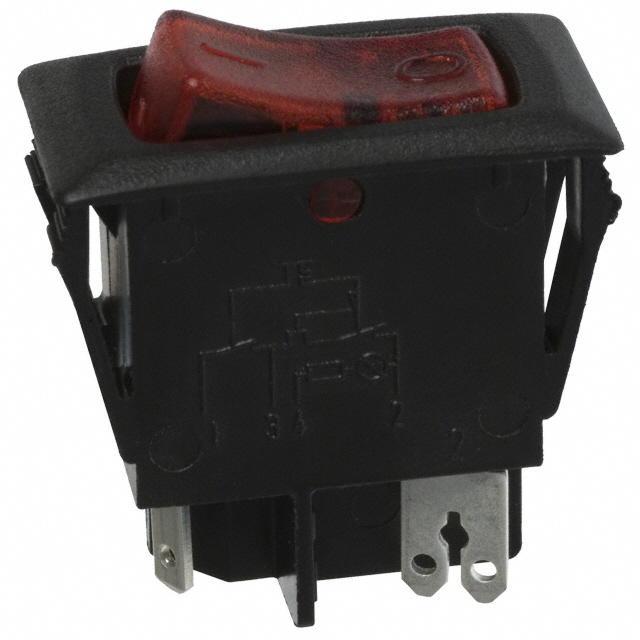

1410-F110-P1F1-W14Q-10A

Circuit Breaker; Therm; Rocker; Cur-Rtg 10A; Snap-In Panel; 1Pole; Blade Snap

Miniaturized single-pole rocker switch/thermal circuit breaker combining ON/Off switching and extremely fast overload performance in a single component. Push-to-reset tease-free, trip-free, snap action mechanism and snap-in panel mounting.

**Features:**

* Combines Circuit Protection, ON/OFF Switch All in One Package

* Optional Illumination to Signal Tripped Status of the Mechanism Suffix B

* Optional Illumination to Indicate the ON Status of the Device Suffix E

* Largely Temperature Insensitive

**Specifications:**

* UL and CSA Approved

* Voltage Ratings: 250 VAC, 50 VDC

* Current Ratings: 0.63 Amps to 10 Amps

* Panel Cut-Out: 1.10" × 0.500"
