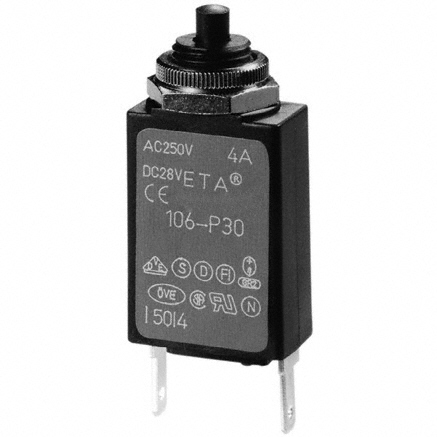

断路器 Thermal circuit breaker, integral type, single pole
Miniaturized single pole thermal circuit breaker with push-to-reset, tease-free, trip-free, snap action mechanism R-type TO CBE to EN 60937. Available in versions for PCB or panel mounting, snap-in or threadneck, or as an integral type. Approval to CBE standard EN 60934 IEC 60937.
**Features:**
* Miniaturized Single-Pole Thermal Circuit Breaker
* Push-to-Reset, Tease Free, Trip Free, Snap Action Mechanism
* Excellent Fuse Replacement
**Specifications:**
* UL, CSA and VDE Approved
* Voltage Ratings: 250 VAC; 48 VDC
* Current Ratings: 0.05 A to 10 A
* Threadneck Panel Mount: 3⁄8"-27
* Mounting Hole: “Single D” Style: 0.378" Dia. × 0.350"
* 0.250" Quick Connect Terminals
**Typical Applications:**
* Motors
* Transformers
* Solenoids
* Printed Circuit Boards
* Hand-held machines and appliances
* Marine
* Caravans
