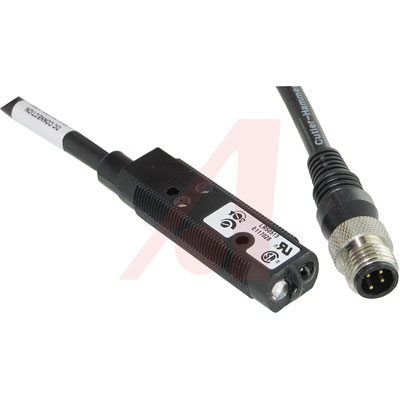

13106AQD07

Photoelectric Switch, 18mm, 200mm Range, Diffuse Reflective, Forward Viewing, 4Pin Micro DC Conn, NPN/PNP

The Cutler-Hammer® Comet Series is a complete line of high performance, 18 mm tubular sensors with a variety of models and modes to solve virtually any sensing problem. The sensors are available in through-beam, reflex, polarized reflex, diffuse reflective, focused diffuse reflective, wide angle diffuse reflective, Perfect Prox®, fine spot Perfect Prox® and fiber optic sensing. Perfect Prox® is one of the most powerful problem-solving sensors available. These sensors can reliably detect targets of different color, reflectance, contrast or surface shape at the same range, while ignoring background objects just a fraction of an inch away. The Comet Series includes AC/DC and DC-only models with, 3- and 4-wire circuitry. Choose from cable or microconnector. Each sensor features a light/dark operation switch and a gain control to provide for quick adjustment to peak optical performance. The unique threaded body with flat sides allows quick mounting in a 3⁄4" hole or against any flat surface. Internal components are rigidly sealed in a solid encapsulated package for excellent performance in high vibration and high-shock applications.

Infrared light Source.

**Features:

**

* Industry Standard 18 mm Diameter Threaded Body has Flat Sides Allowing it to Be Mounted Like a Tubular Sensor or Against any Flat Surface

* Right-Angle Viewing Models Mount in a Depth of Only 6⁄10"

* Perfect Prox® Technology Provides Exceptional Background Rejection and Application Problem-Solving

* Visible Sensing Beams Let You See Where the Beam is Aimed for Quick Setup and Alignment

* Industry"s Only Background Rejection Sensors with a 2-Wire Circuit Design

* Solid Polyurethane Housing Completely Encapsulates Internal Circuits for High Resistance to Shock and Vibration

* Adaptable Modulation Circuit Provides Immunity to Crosstalk From Other Closely Mounted Sensors

* Models Available with Both AC and DC Operation in a Single Unit Up to 264 VAC

* 4-Wire DC Sensors Offer Both NPN and PNP Outputs

* Output Status Indicator Visible from a Wide 270° Angle

* UL Recognized

* C-UL Recognized
