145-A-111/02

Conn; Term Blk; PCB; Screw; 2; 5mm; 26-12AWG; 20A; 300V

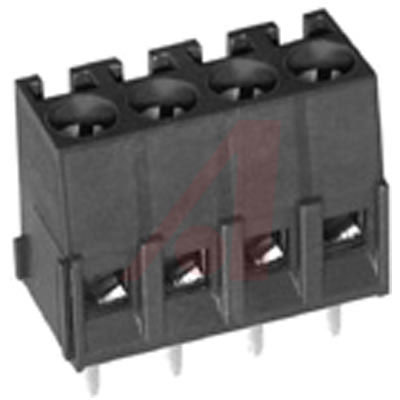

26 to 12 AWG Size Wire, Polyamide Molding, Screw Connectors For Printed Circuit Boards

Series 14 Midi-Lift connectors feature elevator style clamping and captive screws. All products feature dovetail interlocking, which allows for assembly to the required number of poles while maintaining center to center spacing.

.

* Specifications.** ** Insulating Material:** Polyamide, self extinguishing to UL 94, V-0, color gray. ** Temperature Limits:** Short time — 140°C/284°F; Continuous — RTI 105°C/221°F; Low limit — -40°C/-40°F. ** Comparative Tracking Index:** CTI >600\. ** Oxygen Index Rating:** 33%. ** Screw:** M3. ** Approvals** : UL File E69841 — 20 A, 300 V, 26-12 AWG. CSA File LR24322 — 20 A, 300 V, 26-12 AWG.

The tin plated copper alloy is the solder pin and pressure plate material.
