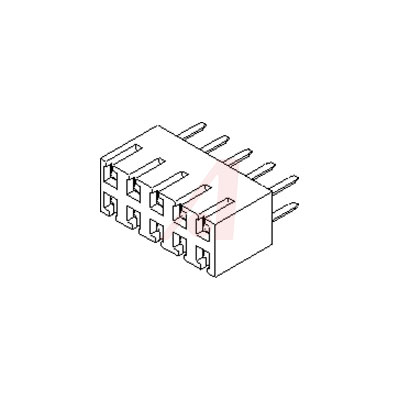

2.54毫米（ .100“ ）间距C- Grid®插座，通孔，双排，知名度很高，立式，高温， 6电路 2.54mm .100" Pitch C-Grid® Receptacle, Through Hole, Dual Row, High Profile,Vertical, High-Temperature, 6 Circuits
C-Grid® Products
The 2.54mm pitch C-Grid® products offer the largest number of variations and cabling configurations in the industry. C-Grid® is a dual row, board-to-board system. The system includes: vertical and right angle headers in breakaway, shrouded and dual-body styles; vertical and right angle receptacles; headers and receptacles for SMT applications; press-fit headers and a 2-circuit shunt completes the C-Grid product line.
This product family is suitable for low power signal applications such as computers, medical instruments, and automotive controls.
触点电镀 Tin
额定电流 2.50 A
排数 2
灼热丝测试标准 Non-Compliant
无卤素状态 Low Halogen
方向 Vertical
电路数 6
易燃性等级 UL 94 V-0
针脚数 6
工作温度Max 105 ℃
工作温度Min -40 ℃
安装方式 Through Hole
外壳颜色 Black
触点材质 Phosphor Bronze
材质 Phosphor Bronze
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
ELV标准 Compliant
REACH SVHC标准 No SVHC
