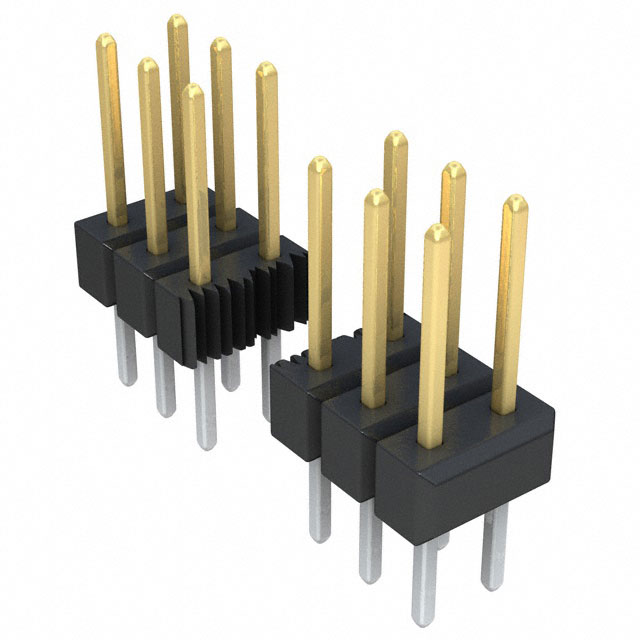

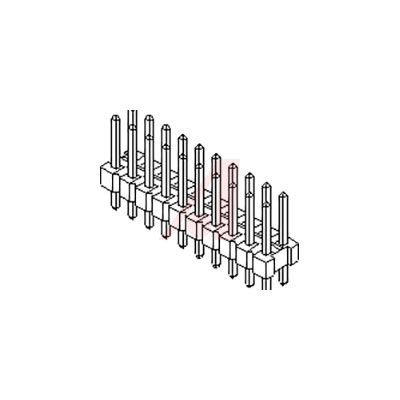

Header Connector, PCB Mount, RECEPT, 60Contacts, PIN, 0.1 Pitch, PC TAIL Terminal
The 2.54mm pitch C-Grid® products offer the largest number of variations and cabling configurations in the industry C-Grid® is a dual row, board-to-board system. The system includes: vertical and right angle headers in breakaway, shrouded and dual-body styles; vertical and right angle receptacles; headers and receptacles for SMT applications; press-fit headers and a 2-circuit shunt completes the C-Grid product line.
This product family is suitable for low power signal applications such as computers, medical instruments, and automotive controls.
触点电镀 Tin, Gold
额定电流 3.00 A
排数 2
灼热丝测试标准 Non-Compliant
无卤素状态 Not Reviewed
方向 Vertical
电路数 60
易燃性等级 UL 94 V-0
针脚数 60
安装方式 Through Hole
引脚间距 2.54 mm
长度 76.0 mm
宽度 5.08 mm
高度 2.29 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
材质 Copper Alloy
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
10-89-7602 Molex 莫仕 | 当前型号 | 当前型号 |
10-89-7601 莫仕 | 功能相似 | 10-89-7602和10-89-7601的区别 |
10-89-7600 莫仕 | 功能相似 | 10-89-7602和10-89-7600的区别 |
10-89-7603 莫仕 | 功能相似 | 10-89-7602和10-89-7603的区别 |
