133-3304-001

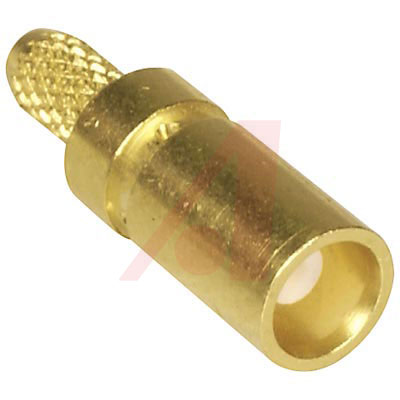

Conn MCX RCP 0Hz to 6GHz 50Ω Solder/Crimp ST Cable Mount Gold

**Working Voltage Rating at Sea Level for Cable Type:** RG-178 — 250 VRMS; RG-316, 0.086" semi-rigid and uncabled adapters — 335 VRMS. **Frequency Range:** 0–6 GHz. **Materials:** Body — Brass, gold-plated; Crimp sleeves — Copper, gold-plated; Mounting hardware — Brass nuts, phosphor bronze lockwasher, gold or nickel plated. **Insulation:** PTFE fluorocarbon. **Features:**

* 30% Smaller than the SMB Connectors

* Plating: Gold Over Brass Except Where Noted

Allied Electronics:
Connector; MCX Jack; 50 Ohms; 0 to 6 GHz; Crimp; Brass

Electro Sonic:
Conn MCX RCP 0Hz to 6GHz 50Ohm Solder/Crimp ST Cable Mount Gold
