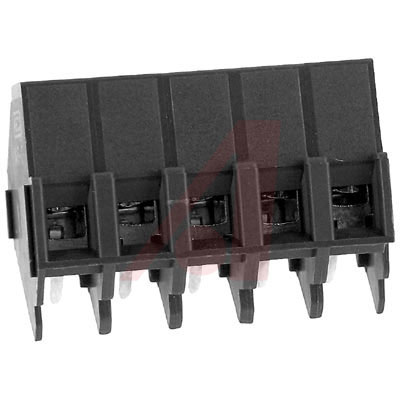

146-C-111/05

Conn; Term Blk; PCB; Screw; 5; 5.08mm; 45Deg; 26-12AWG; 20A; 300V

300 V, Screw Connectors for Printed Circuit Boards

* Dovetail version

* Wire entrance at 45 angle to PC Board

* Elevator-style clamping mechanism

* Can be factory, field or distributor assembled to almost any length

Can be installed anywhere on PCB without wires or screws interfering with the rest of PCB. Can be located next to each other back-to-back, front-to-front and front-to-back. The screws and wire entries are easily visible, accessible and usable, an ergonomic advantage.
