集管和线壳 2X16 POS VERT TIN
16P MOD2 STIFT LEI
得捷:
CONN HEADER VERT 32POS 2.54MM
贸泽:
集管和线壳 2X16 POS VERT TIN
艾睿:

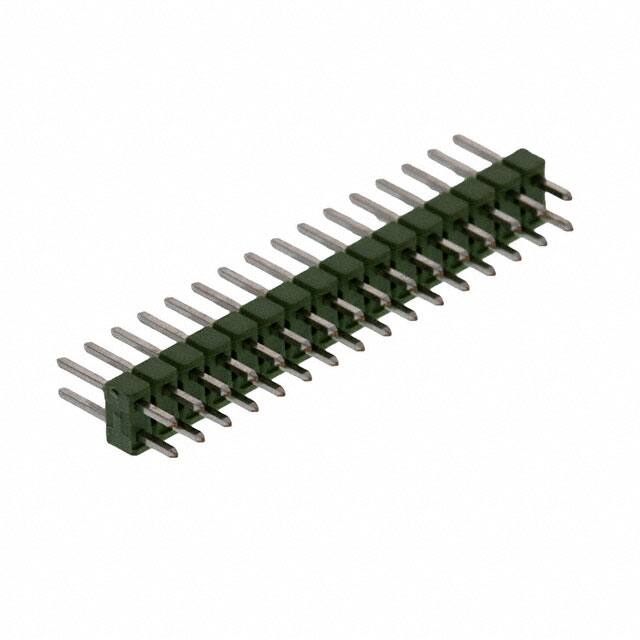

Reduce safety concerns with this unshrouded 1-826942-6 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 32 contacts that are made out of bronze and plated with tin over nickel. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. It has a header type gender. This device has a maximum current rating of 3 A/contact. This connector has an operating temperature of -65 to 105 °C. 1-826942-6 is housed in green polybutylene terephthalate. This product is 81.28 mm long, 8.6 mm tall and 5 mm deep. It uses the solder termination method.
安富利:
Conn Unshrouded Header HDR 32 POS 2.54mm Solder ST Thru-Hole
Verical:
Conn Unshrouded Header HDR 32 POS 2.54mm Solder ST Top Entry Thru-Hole Carton
Newark:
# AMP - TE CONNECTIVITY 1-826942-6 16P MOD2 STIFT LEI New
MASTER:
AMPMODU II PIN HEADER, SINGLE ROW, DUAL ROW, VERTICAL AND RIGHT ANGLE MOUNT
Online Components:
16P MOD2 STIFT LEI
Electro Sonic:
16P MOD2 STIFT LEI
