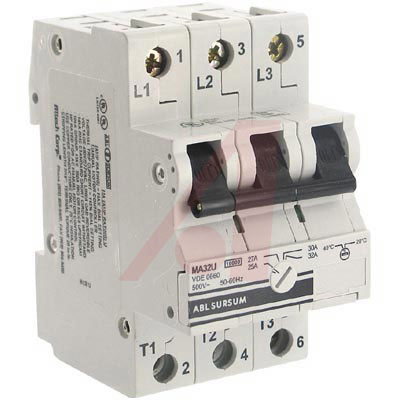

Altech 15.914U Three Phase Adjustable Trip Miniature Circuit Breakers/Manual Motor Controllers - Manual Motor Control...
The MA Series was designed to handle the high inrush loads of 3 phase transformers, power supplies, motors, etc. This series protects wiring and equipment from damage caused by the three major classes of over-current, yet greatly reduces the number of nuisance trips in high starting and inrush current circuits.
Features:
* UL508 Listed
* CAN/CSA 22.2
* Adjustable Thermal Trip
* DIN Rail Mount Snap On
* Switched Disconnect
* Large Cage Clamp Terminals with Screws
额定电流 32 A
安装方式 DIN Rail
Actuator Type Handle
Brand/Series MA Series
Color, Actuator Black
Current Rating 32 A
Dimensions 2.68 L x 2.07 W x 3.52 H in.
Mounting Type DIN Rail
Number of Poles 3 Pole
Primary Type Circuit Breaker
Special Features UL508 Listed
Standards UL Listed, cUL, CE Approved
Termination Screws
Thread Length 0.625
Time, Trip Adjustable Trip
Type Thermal
Voltage Rating 480/277 VAC
RoHS标准 RoHS Compliant
