1521700000

接线端子, DIN导轨安装, 4 路, 28 AWG, 12 AWG, 2.5 mm², 推入式, 24 A

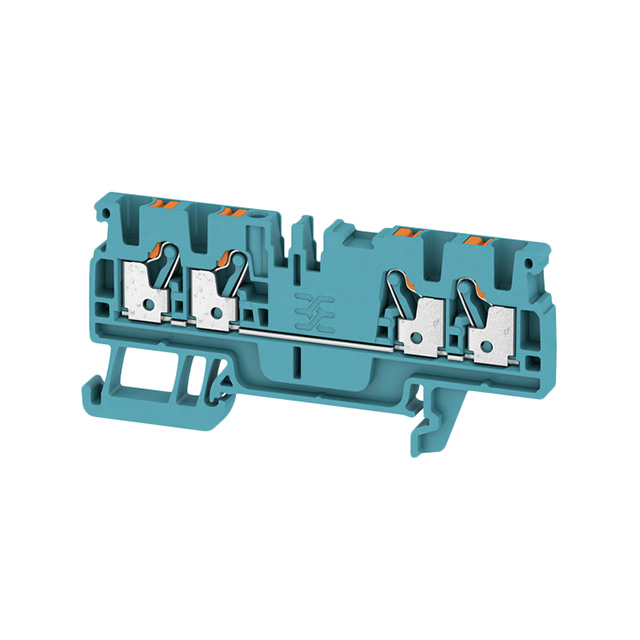

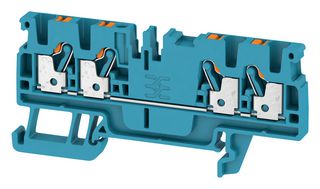

The from is a blue colour feed through terminal block with 4 connections. It is made of wemid material, terminal block has one potential, one level, four clamping points per level and one potential per tier. The wire connection cross section ranges from 28AWG to 12AWG.

.

PUSH IN technology, snap-on type of fixing and snap-on type of mounting

.

Dimension is 5.1mm x 77.5mm x 36.5mm W x H x D

.

Net weight of 9.82g

.

Continuous operating temperature range from -50°C to 130°C

.

Flammability rating meets UL94-V0

.

TS 35 mounting rail

.

Clamping range, rated connection range from 0.14mm² to 2.5mm²

.

Rated cross-section of 2.5mm², rated voltage of 800V & rated current of 24A

.

IEC 60947-7-1 standard and pollution severity 3

.

UL E60693, CEcURus approvals
