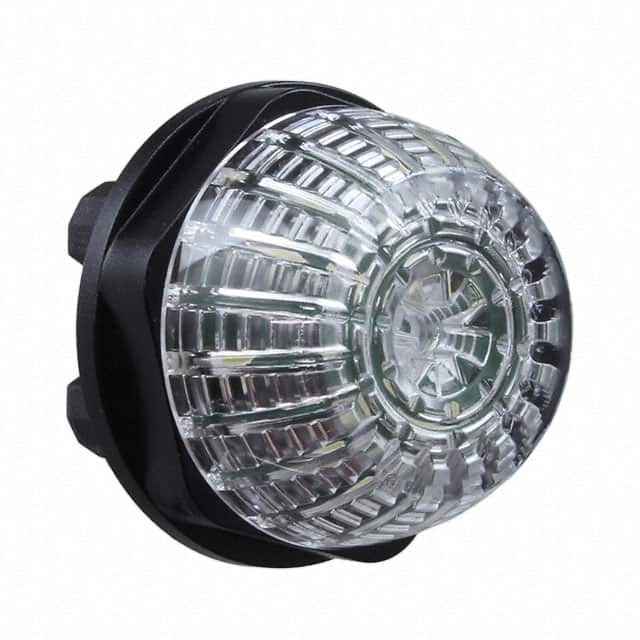

发光二极管指示器 面板安装, 白色, 24 V, 22.5 mm, 50 mA, IP66, IP67, IP69K
EAO, your Expert Partner for Human Machine Interfaces HMIs, has added an innovative LED indicator to its Series 14. Thanks to its front or rear-mounting ability, these LED indicators offer ease and flexibility by way of a fixing nut or direct-mounting via a threaded hole in the front panel. Cables can be quickly connected and securely attached using practical push-in terminals PIT. The operating voltage is between 14 and 32VAC/DC
5 high intensity colors choices are offered. Back panel depth is only 9.5mm and when installed offers 1P65, IP67, IP69K front panel sealing protection. These LED indicators fit a standard 22.5mm opening.
**Features:**
* Compact – 28.55mm H
* High-intensity Illumination – 5 colors: Red, Orange, Green, Blue, White
* 180 all around visibility
* East and time saving installation- threaded mount or fixing nut
* Reliable PIT terminal
* Long service life – 50K Hours
* IP69K protection
* Operating temp: -25 C to +60 °C
* Back panel depth 9.5mm
* Current consumption- <50mA
**Typical applications:**
* Machinery
* Industrial
* Robotics
* Heavy equipment
* Rail vehicles
