Connectors APD Series High Power Plugs 1 Way

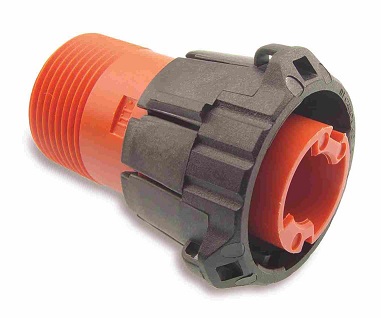

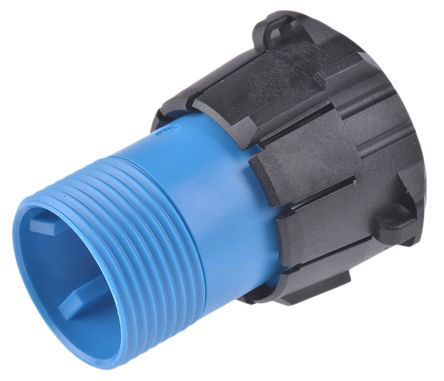

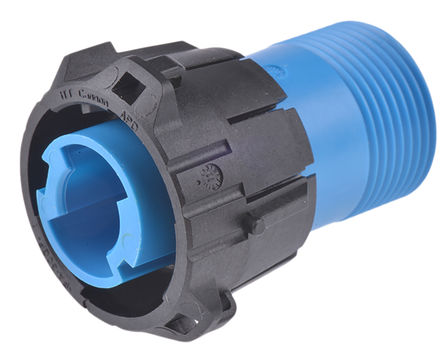

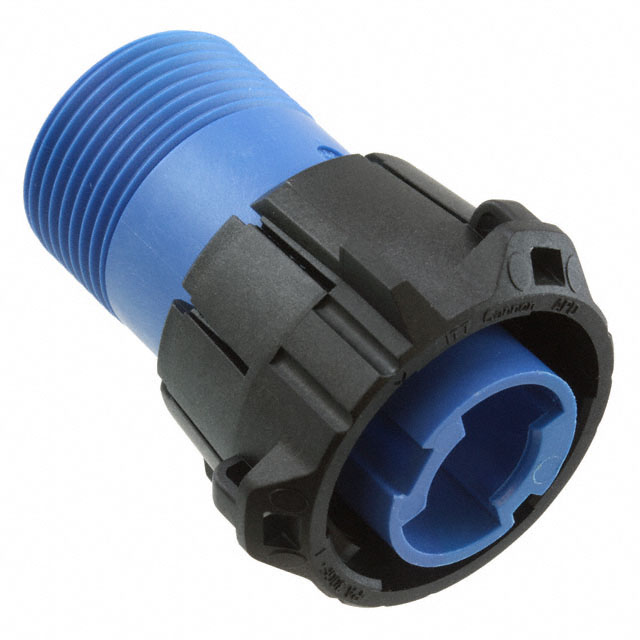

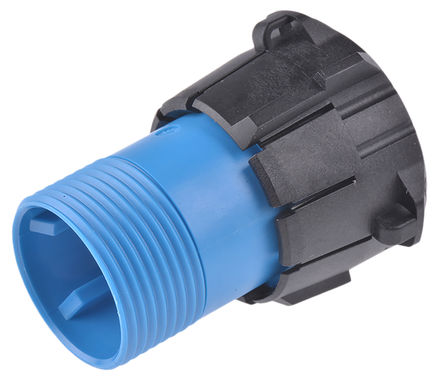

ITT Cannon connectors APD series high power plugs 1 way are suitable for high power connector applications such as tail lifts and power supplies for antennas and base stations and heavy automotive connector uses. The APD series plugs small form and high power handling make them ideal for many applications. Durable hard wearing connectors derived from ISO 15170.
Operating voltage 48 VDC
Contact resistance 0.4 mΩ
Voltage proof 1000Vac 60 secs
Insulation resistance 10 MΩ min.
Up to 50 mating cycles
### 注
For socket contacts see: 752-5521, 752-5525 , 752-5512 , 752-5515 For Cable seals see: 752-5556 , 752-5559 , 752-5543 , 752-5547 For Hex Nut see 752-5553 and for Endbells see: 752-5569 , 752-5565
### 标准
DIN EN 60529, ISO 15170-2 sec.6.2, 6.3, 6.6, EN 60512
