1EDI2010ASXUMA1

IGBT驱动器, 高压侧, 1A, 4.65V至18V电源, 215ns/215ns延迟, EiceDRIVER SENSE系列, SOIC-36

Summary of Features:

.

8-bit ADC with programmable offset and gain and flexible trigger mechanism

.

Single Channel IGBT Driver

.

On-chip galvanic insulation as per DIN EN 60747-5-2

.

Support of existing IGBT technologies up to 1200V

.

Low propagation delay and minimal PWM distortion

.

Support of 5 V logic levels primary side

.

Supports both negative and zero Volt VEE2 supply voltage

.

16-bit Standard SPI interface up to 2 MBaud with daisy chain support primary side

.

Compatible to EiceBoost family

.

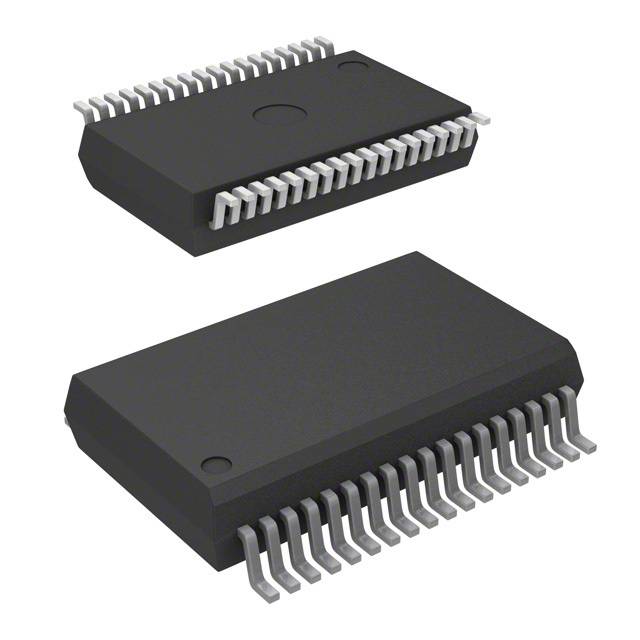

36-pin PG-DSO-36 green package

.

Automotive qualified as per AEC Q100

.

Programmable Desaturation monitoring

.

Overcurrent protection with programmable threshold

.

Fully programmable Two-Level Turn On TTON

.

Fully programmable Two-Level Turn Off TTOFF

.

Emulated digital channel

.

Automatic Emergency Turn-Off in failure case

.

Programmable UVLO2 and DESAT thresholds for MOSFET usage

.

Internal life sign watchdog

Benefits:

.

Embedded ADC reduces significantly system costs

.

The combined use with the EiceDRIVER™BOOST saves significant PCB area

.

Two-level turn-on increases the system’s efficiency

.

Full temperature und voltage measurements

Target Applications:

Please also find the single channel booster for automotive applications  EiceDRIVER ™ Boost 1EBN1001AE
