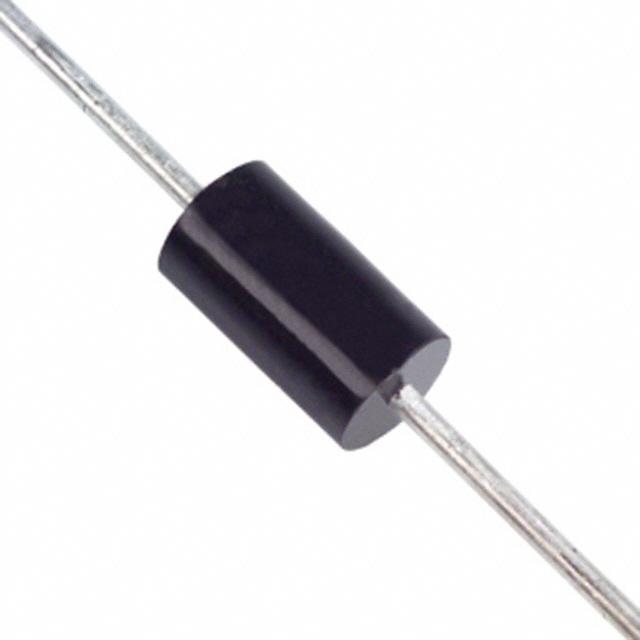

1.5KE200A-T

Diode TVS Single Uni-Dir 171V 1.5kW 2Pin DO-201 T/R

Features

• 1500W Peak Pulse Power Dissipation

• Voltage Range 6.8V - 400V

• Constructed with Glass Passivated Die

• Uni- and Bidirectional Versions Available

• Excellent Clamping Capability

• Fast Response Time

• Lead Free Finish, RoHS Compliant Note 3

得捷:
TVS DIODE 171VWM 274VC DO201

艾睿:
Sleep easy, never worry about surges again with this 1.5KE200A-T TVS diode from Diodes Zetex. This device&s;s maximum clamping voltage is 274 V and minimum breakdown voltage is 190 V. Its test current is 1 mA. Its peak pulse power dissipation is 1500 W. Its maximum leakage current is 5 μA. This TVS diode has an operating temperature range of -55 °C to 175 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.

安富利:
Diode TVS Single Uni-Dir 171V 1.5KW 2-Pin DO-201 T/R

Chip1Stop:
Diode TVS Single Uni-Dir 171V 1.5KW 2-Pin DO-201 T/R

Verical:
Diode TVS Single Uni-Dir 171V 1.5KW 2-Pin DO-201 T/R
