ESD 抑制器/TVS 二极管
ESD 抑制器/TVS
得捷:

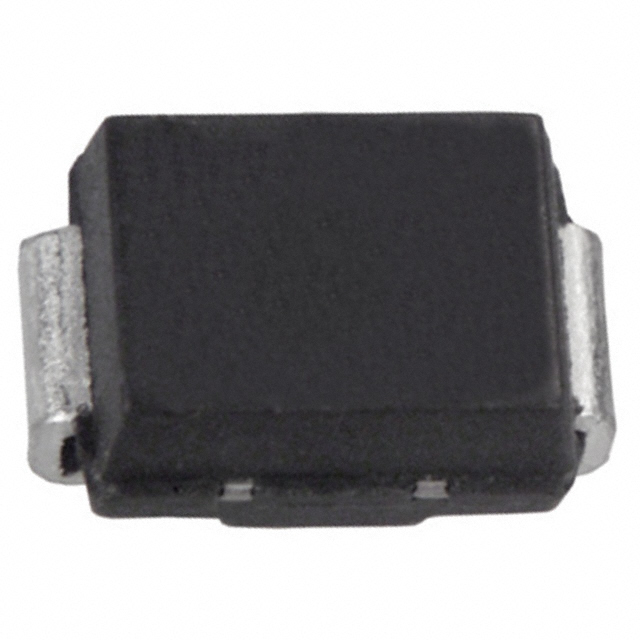

DIODE ZENER 10V 3W SMB
立创商城:
10V ±5% 550mW
艾睿:
This 1SMB5925B-13 zener diode from Diodes Zetex will allow you to run it in the reverse direction. Its maximum leakage current is 5 μA. This device has a maximum regulator current of 150 mA. Its maximum power dissipation is 550 mW. Its test current is 37.5 mA. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration. This zener device has a nominal voltage of 10 V and a voltage tolerance of 5%.
安富利:
Diode Zener Single 10V 5% 550mW 2-Pin SMB T/R
Chip1Stop:
Diode Zener Single 10V 5% 550mW 2-Pin SMB T/R
Verical:
Zener Diode Single 10V 5% 4.5Ohm 3000mW 2-Pin SMB T/R
容差 ±5 %
额定功率 3.00 W
正向电压 1.5V @200mA
耗散功率 3 W
测试电流 37.5 mA
稳压值 10 V
正向电压Max 1.5V @200mA
额定功率Max 3 W
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 550 mW
安装方式 Surface Mount
引脚数 2
封装 SMB
长度 4.57 mm
宽度 3.94 mm
高度 2.5 mm
封装 SMB
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
