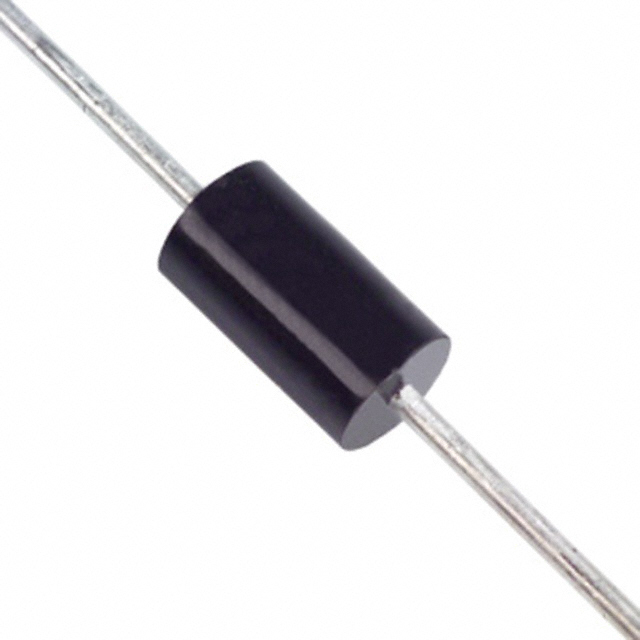

1.5KE20 系列 1500 W 19 V 表面贴装 双向 TVS 二极管 - DO-201
Features
• 1500W Peak Pulse Power Dissipation
• Voltage Range 6.8V - 400V
• Constructed with Glass Passivated Die
• Uni- and Bidirectional Versions Available
• Excellent Clamping Capability
• Fast Response Time
• Lead Free Finish, RoHS Compliant Note 3
立创商城:
双向 Vrwm:17.1V 1.5kW
得捷:
TVS DIODE 17.1VWM 27.7VC DO201
艾睿:
This 1.5KE20CA-T TVS diode developed by Diodes Zetex can help protect your expensive equipment and electronics. Its maximum leakage current is 5 μA. Its peak pulse power dissipation is 1500 W. This device&s;s maximum clamping voltage is 27.7 V and minimum breakdown voltage is 19 V. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 °C to 175 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.
安富利:
Diode TVS Single Bi-Dir 17.1V 1.5KW 2-Pin DO-201 T/R
Chip1Stop:
Diode TVS Single Bi-Dir 17.1V 1.5KW 2-Pin DO-201 T/R
Verical:
Diode TVS Single Bi-Dir 17.1V 1.5KW 2-Pin DO-201 T/R
额定电压DC 20.0 V
额定功率 1.50 kW
击穿电压 19 V
耗散功率 1500 W
钳位电压 27.7 V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 19 V
击穿电压 19 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 DO-201
长度 9.5 mm
直径 5.21 mm
封装 DO-201
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1.5KE20CA-T Diodes 美台 | 当前型号 | 当前型号 |
1.5KE20CA-B 美台 | 完全替代 | 1.5KE20CA-T和1.5KE20CA-B的区别 |
1.5KE20CA-E3/1 威世 | 类似代替 | 1.5KE20CA-T和1.5KE20CA-E3/1的区别 |
