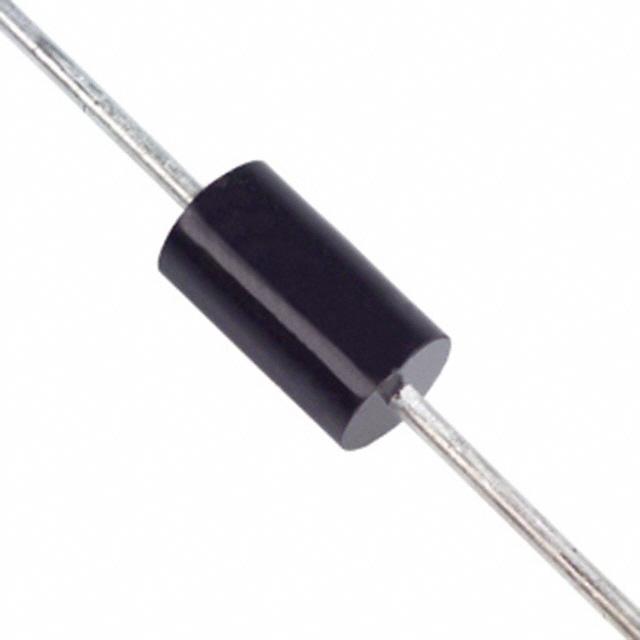

1.5KE82A-T

单向 70.1V

113V 夹子 13.3A Ipp TVS - 通孔 DO-201

立创商城:
单向 Vrwm:70.1V 1.5kW

得捷:
TVS DIODE 70.1VWM 113VC DO201

贸泽:
TVS Diodes - Transient Voltage Suppressors 1500W 70.10V

艾睿:
Get protected with this 1.5KE82A-T TVS diode manufactured from Diodes Zetex. This device&s;s maximum clamping voltage is 113 V and minimum breakdown voltage is 77.9 V. Its peak pulse power dissipation is 1500 W. Its maximum leakage current is 5 μA. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 °C to 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

安富利:
Diode TVS Single Uni-Dir 70.1V 1.5KW 2-Pin DO-201 T/R

Chip1Stop:
Diode TVS Single Uni-Dir 70.1V 1.5KW 2-Pin DO-201 T/R
