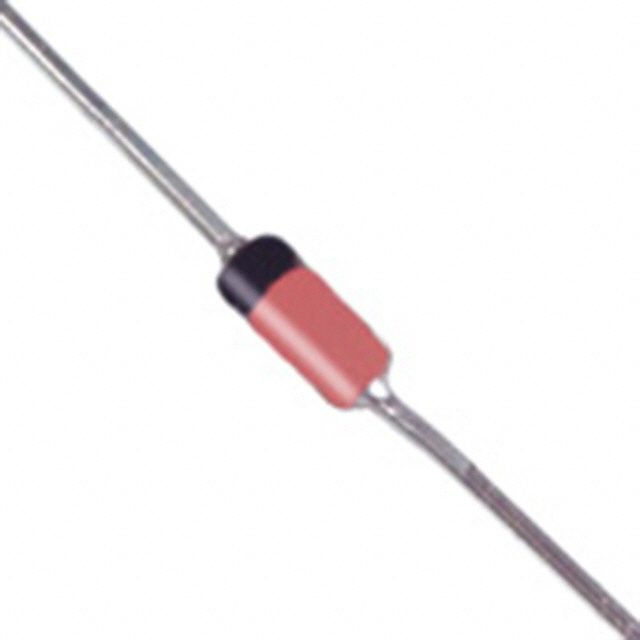

Diode Zener Single 4.3V 5% 0.5W1/2W 2Pin DO-35 T/R
- 齐纳 4.3 V 500 mW ±5% 通孔 DO-35
得捷:
DIODE ZENER 4.3V 500MW DO35
贸泽:
Zener Diodes 500MW 4.3V
艾睿:
If your circuit requires a diode to operate in the reverse breakdown region, then this 1N5229B-T zener diode from Diodes Zetex is exactly what you need. Its test current is 20 mA. Its maximum power dissipation is 500 mW. Its maximum leakage current is 5 μA. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This zener device has a nominal voltage of 4.3 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has an operating temperature range of -65 °C to 200 °C.
安富利:
Diode Zener Single 4.3V 5% 500mW 2-Pin DO-35 T/R
Chip1Stop:
Diode Zener Single 4.3V 5% 500mW 2-Pin DO-35 T/R
Verical:
Zener Diode Single 4.3V 5% 22Ohm 500mW 2-Pin DO-35 T/R
额定电压DC 4.30 V
容差 ±5 %
额定功率 500 mW
正向电压 1.1V @200mA
耗散功率 500 mW
测试电流 20 mA
稳压值 4.3 V
正向电压Max 1.1V @200mA
额定功率Max 500 mW
工作温度Max 200 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2
封装 DO-35-2
长度 4 mm
宽度 2 mm
高度 2 mm
封装 DO-35-2
工作温度 -65℃ ~ 200℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5229B-T Diodes 美台 | 当前型号 | 当前型号 |
BZT52C4V3-7-F 美台 | 类似代替 | 1N5229B-T和BZT52C4V3-7-F的区别 |
MMSZ5229BS-7-F 美台 | 类似代替 | 1N5229B-T和MMSZ5229BS-7-F的区别 |
1N5229B-TR 威世 | 功能相似 | 1N5229B-T和1N5229B-TR的区别 |
