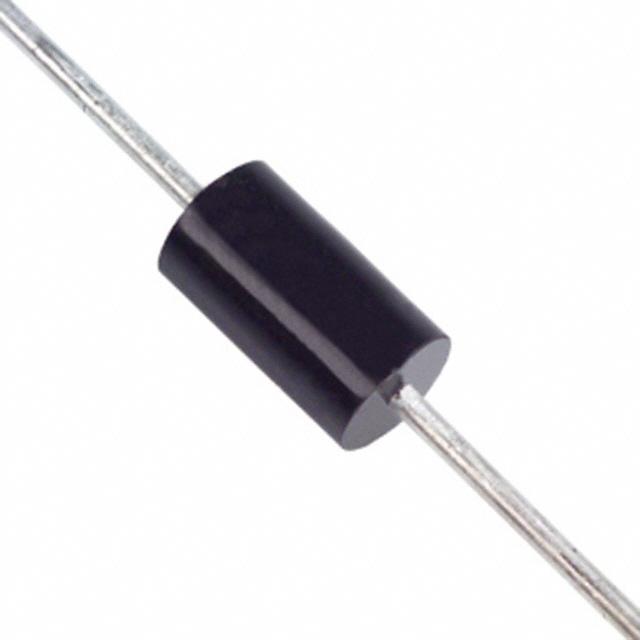

ESD 抑制器/TVS 二极管 1500W 5.8V
Protect your electronic equipment from sudden or momentary overvoltage conditions with this TVS diode from Zetex. This device"s maximum clamping voltage is 10.5 V and minimum breakdown voltage is 6.45 V. Its peak pulse power dissipation is 1500 W. Its test current is 10 mA. Its maximum leakage current is 2000 μA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.
额定电压DC 6.80 V
工作电压 5.8 V
额定功率 1.50 kW
击穿电压 6.45 V
电路数 1
耗散功率 1.5 kW
钳位电压 10.5 V
测试电流 10 mA
脉冲峰值功率 1500 W
最小反向击穿电压 6.45 V
击穿电压 6.45 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 DO-201-2
长度 9.5 mm
直径 5.21 mm
封装 DO-201-2
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1.5KE6V8CA-T Diodes 美台 | 当前型号 | 当前型号 |
1.5KE6.8CA-E3/1 威世 | 类似代替 | 1.5KE6V8CA-T和1.5KE6.8CA-E3/1的区别 |
1.5KE6.8CA/1 威世 | 类似代替 | 1.5KE6V8CA-T和1.5KE6.8CA/1的区别 |
1.5KE6V8CA 意法半导体 | 功能相似 | 1.5KE6V8CA-T和1.5KE6V8CA的区别 |
