Diode Zener Single 6.2V 5% 550mW 2Pin SMB T/R
- 齐纳 ±5% 表面贴装型 SMB
得捷:
DIODE ZENER 6.2V 3W SMB
立创商城:
6.2V ±5% 550mW
艾睿:

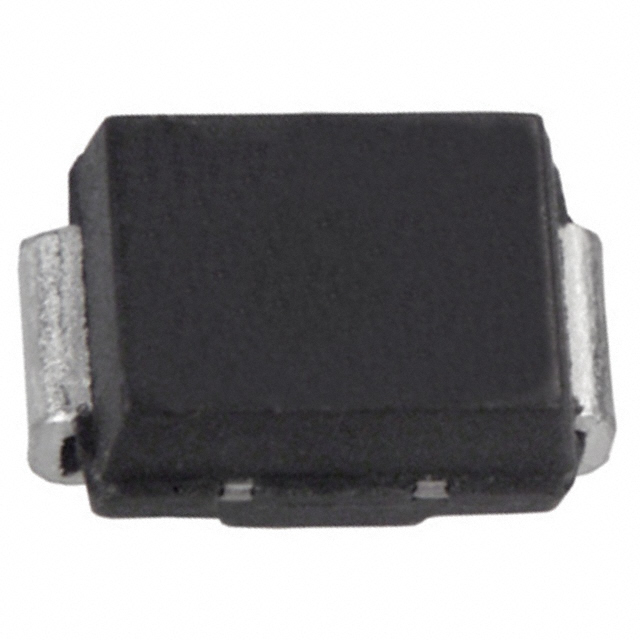

This 1SMB5920B-13 zener diode from Diodes Zetex is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its maximum leakage current is 5 μA. Its test current is 60.5 mA. Its maximum power dissipation is 550 mW. This device has a maximum regulator current of 241 mA. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This zener device has a nominal voltage of 6.2 V and a voltage tolerance of 5%. It is made in a single configuration.
安富利:
Diode Zener Single 6.2V 5% 550mW 2-Pin SMB T/R
Chip1Stop:
Diode Zener Single 6.2V 5% 550mW 2-Pin SMB T/R
Verical:
Zener Diode Single 6.2V 5% 2Ohm 3000mW 2-Pin SMB T/R
Win Source:
DIODE ZENER 6.2V 3W SMB
容差 ±5 %
额定功率 3.00 W
正向电压 1.5V @200mA
耗散功率 550 mW
测试电流 60.5 mA
稳压值 6.2 V
正向电压Max 1.5V @200mA
额定功率Max 3 W
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 550 mW
安装方式 Surface Mount
引脚数 2
封装 SMB-2
长度 4.57 mm
宽度 3.94 mm
高度 2.5 mm
封装 SMB-2
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
